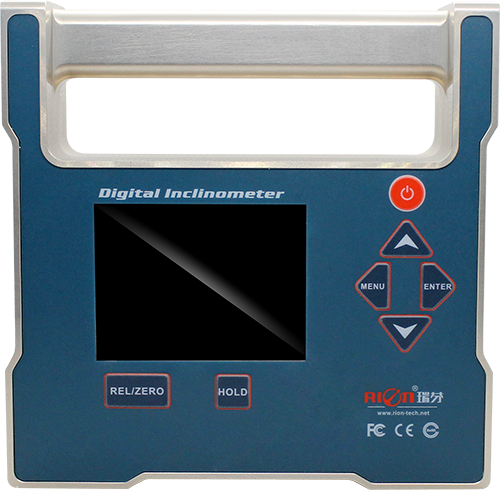

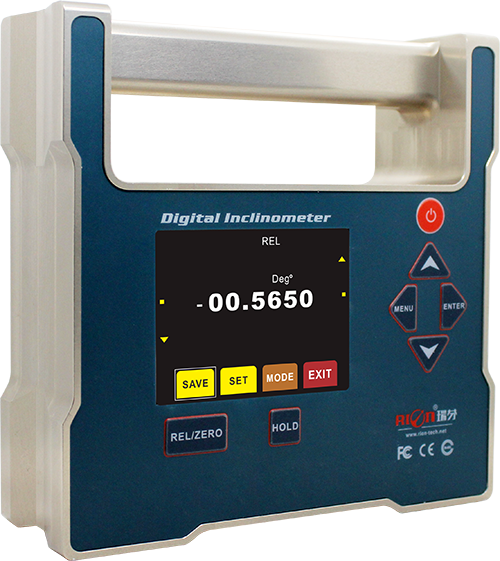

RION DMI850

DIGITAL DISPLAY INCLINOMETER

Best accuracy：<0.002°

Angular resolution：0.0005°

IP54 protection class

Maximum measurement range：±30°

Data storage function

Absolute / relative measurement switchable

Customers can calibrate the zero point by themselves

  • Product Description
  • Scope of application
  • Parameter
  • Dimensions
  • Download

Product Description

DMI850 is one Single axis Digital Inclinometer developed by RION company based on high precise angle measurement platform, it adopts the quartz pendulum slice of the earth's gravity induction component to solve the object level tilt angle. The built-in 32 bit microprocessor and collocation 32 bit high precision analog-to-digital converter, can highly subdivision sampling for the front weak current current and signal ratio of inclination , can meet the highest level accuracy of 0.001 degrees, the resolution is up to 0.0005 degrees. It can perform on-site data playback and chart analysis, and is the best instrument for high-precision platform leveling and measurement.

Scope of application

Medical device angle leveling

Machine platform angle leveling

Lifting table angle leveling

PARAMETER

DMI850

PARAMETER

unit

Measurement Range

±30

°

Measuring Axis

Single-axis


BestAccuracy

<0.002 (＜5°)、<0.003 (5°-30°)

°(RMS)

Resolution

0.0005

°

Measurement Mode

Two modes can be set: degree, mm / m

/

Lcd

64 color true color luminous display

/

Lcd Visible Size

L60*W45

mm

Operating Temperature

-10°～+70℃

°/℃

Working Humidity

85

%RH

Power Supply

2A No.5 battery

/

Battery Continuous Working Time

6

h

Anti-Vibration

10g @ 11ms, triaxial and same (half sine wave)

/

Impact Resistance

10grms、10～100Hz

/

Weight

1200

g

Protect Class

IP54

/

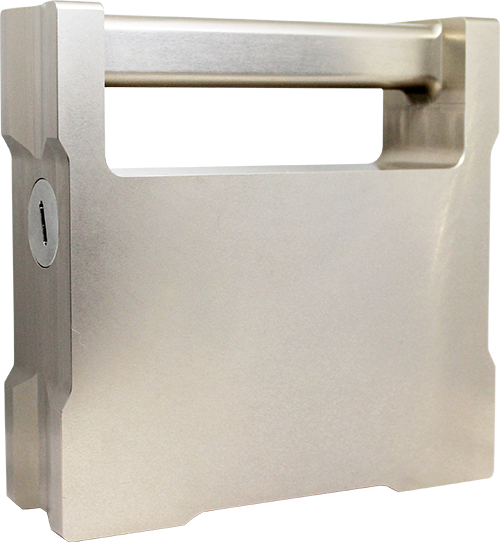

Material

Anodizing of aluminum alloy

/

Size

L140*W140*H45mm

mm

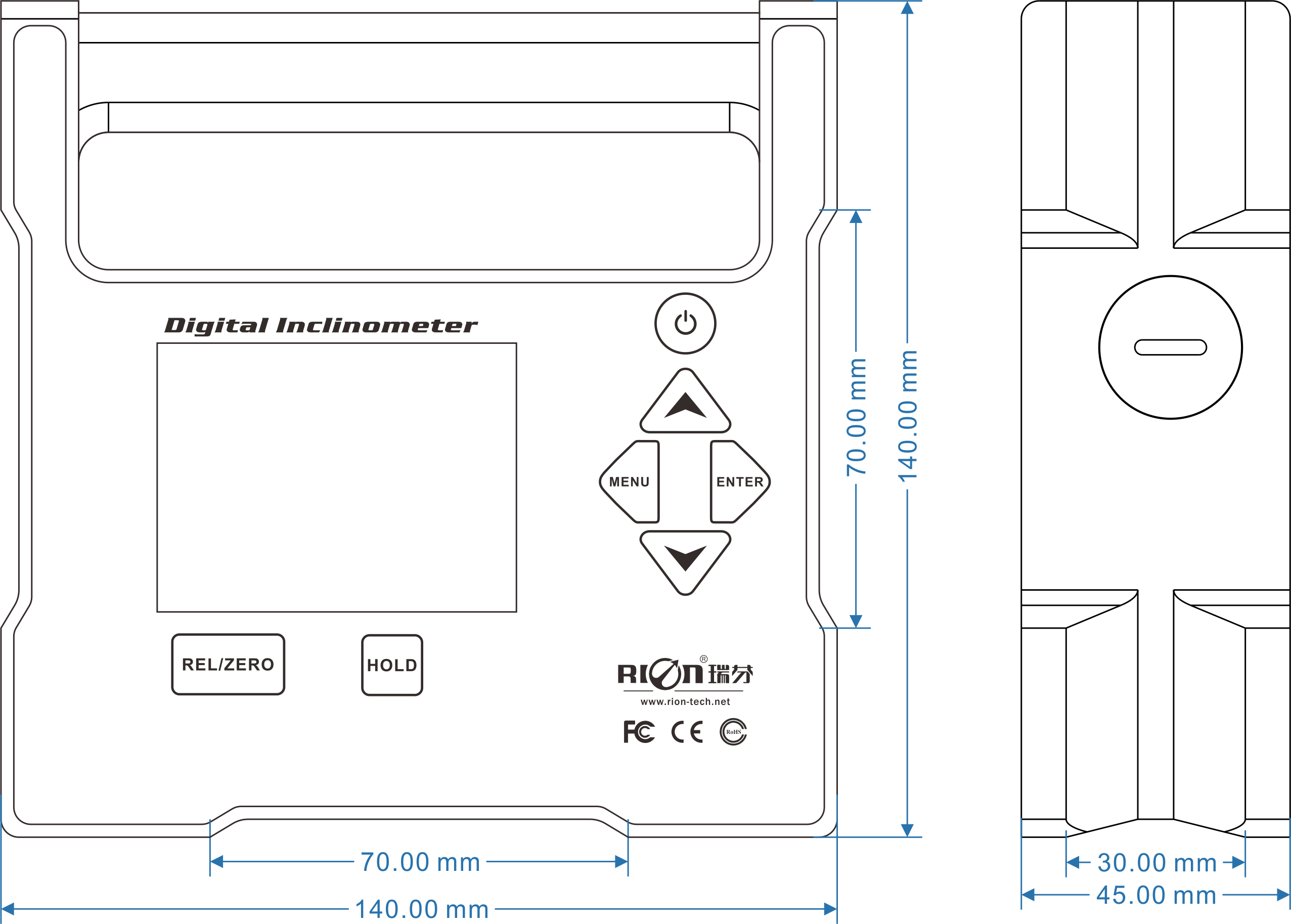

Dimensions

Size description

  • Shell size

    L140×W140×H45mm

  • Installation method

    Two-sided strong magnetic adsorption installation
