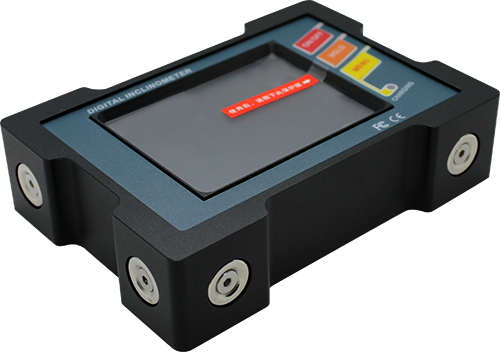

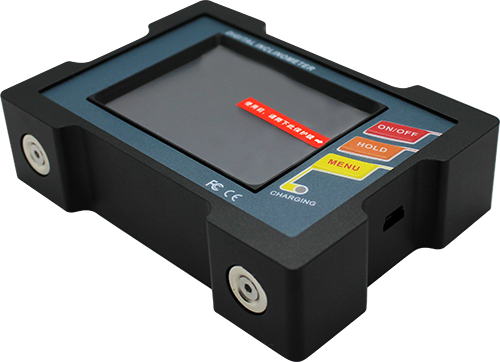

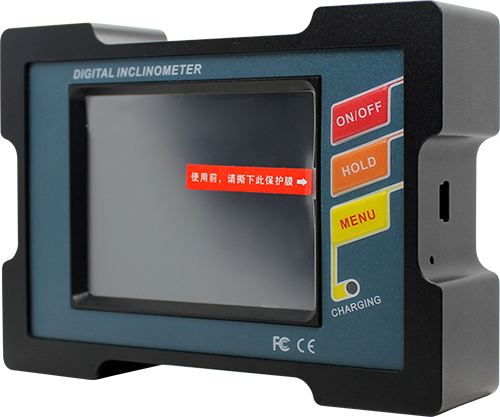

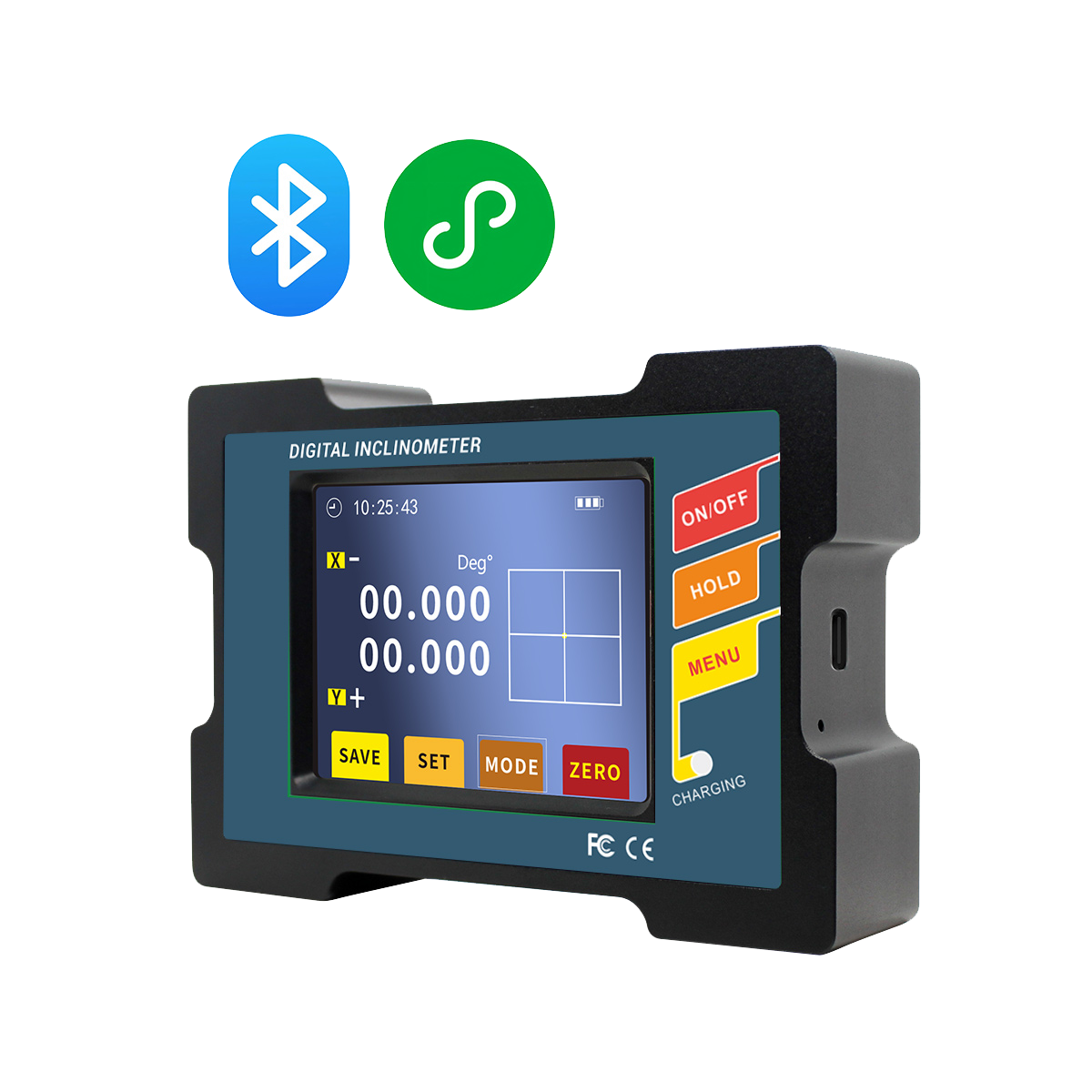

Product Description

DMI810 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. Single and double axis measurement, measurement range ±30° measurement, resolution 0.001°, highest accuracy <0.005° full value、fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, DMI810 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

Scope of application

Medical device angle leveling

Machine platform angle leveling

Lifting table angle leveling

TECHNICAL DATA

PARAMETER

DMI810

DMI820

UNIT

Meausre Axis

Single Axis

Daul Axis

Axis

Angle Measure Range

±15 °

±30 °

±15 °

±30 °

°

Angle Measurement Accuracy(Full Range)

<0.005

<0.01

<0.005

<0.01

°

Angle Measure Resolution

0.001

0.001

0.001

0.001

°

Mm/m Measure Range

267

577

267

577

mm/m

Mm/m Measure Accuracy

0.1

0.2

0.1

0.2

mm/m

Mm/m Measure Resolution

0.02

0.02

0.02

0.02

mm/m

Repeatability

0.003

0.003

0.003

0.003

°

Measurement Mode

Angle、Degree/Minute/Second、Mm/m Three modes can be set

Working Temperature

-10°~ +70℃

Working Humidity

85%RH

Power Supply

3.7V Charging Lithium Battery

Ideal Charging Time

5h

Battery Continuous Working Time

11h

Equipped With Pc Software

Vc Software

Data Output Signal

Standard USB connector, rechargeable

Connect Plug In

Standard Usb Connector, Rechargeable

Shock Resistance

10g@11ms、3 Axial Direction (Half Sinusoid)

Shock Impact

10grms、10~100Hz

Waterproof Grade

IP54

Material

Aluminum Alloy Anodizing

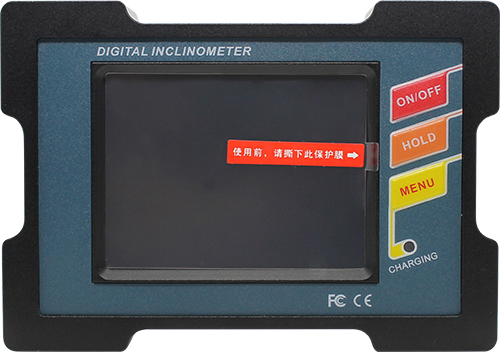

Lcd

64 True Colors Night Vision Display Screen

Lcd Visible Area Size

L57.6W43.2mm

Size

L109W77*H27mm

Weight

≤350g

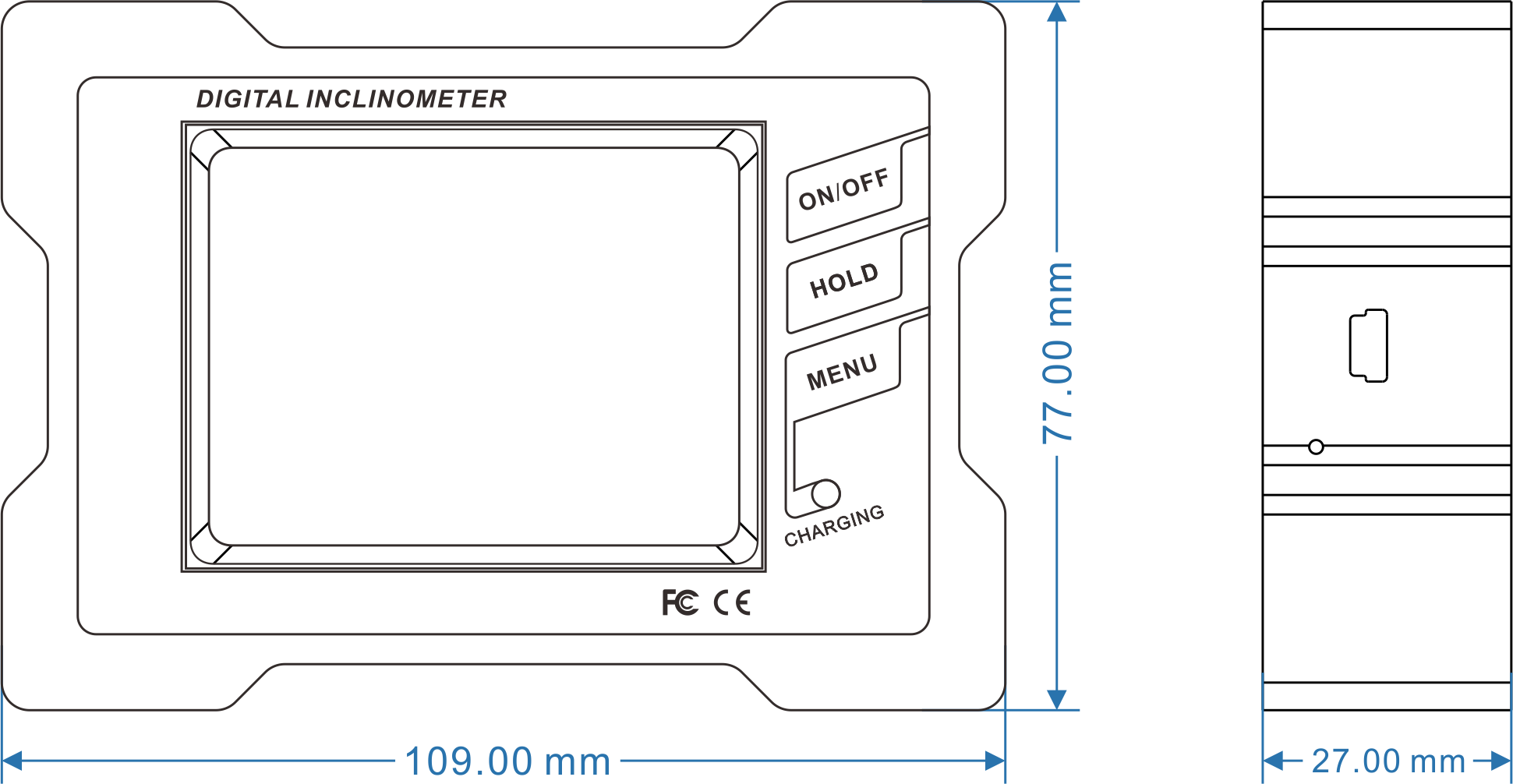

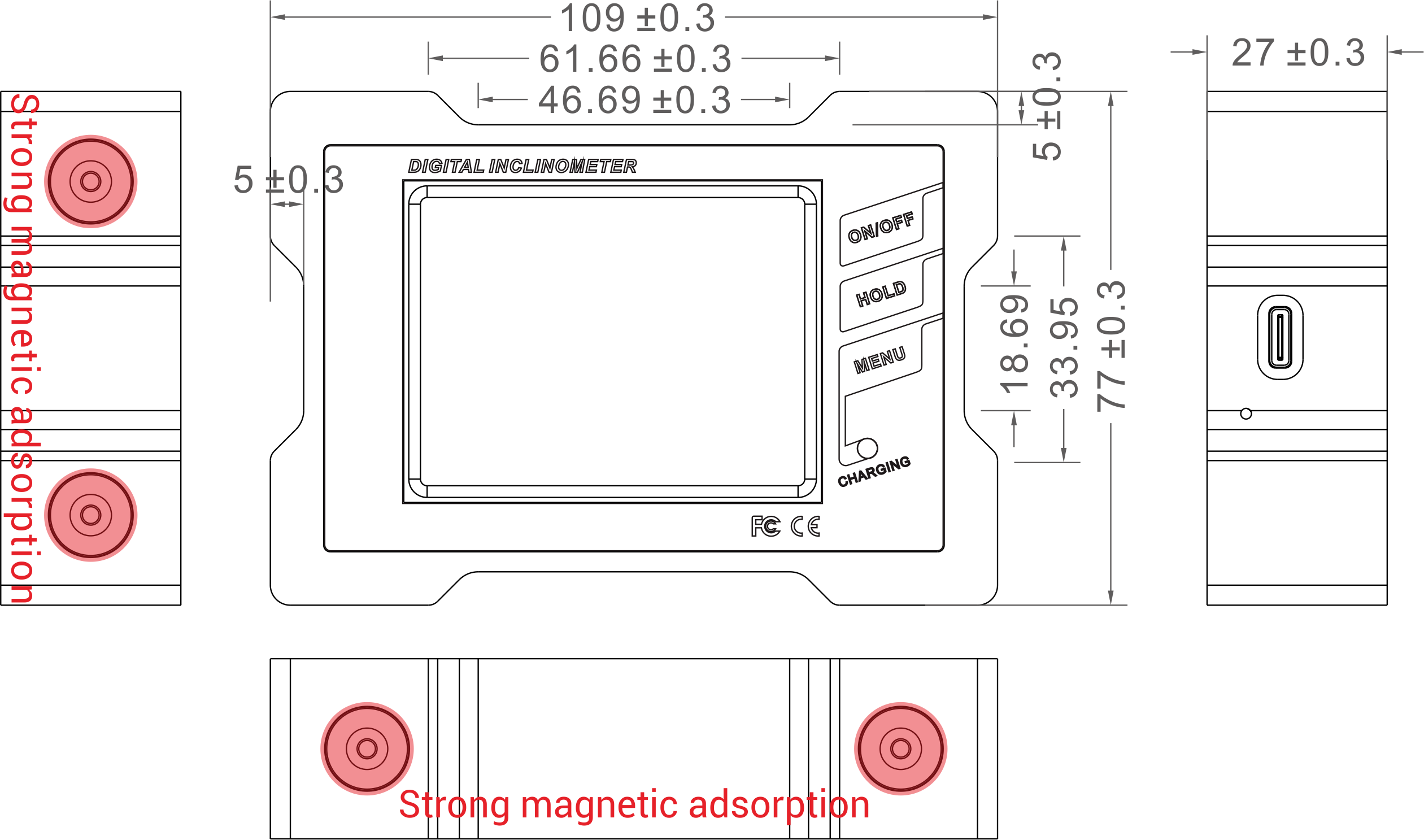

Dimensions

Size description

Shell size

L109×W77×H27mm
Installation method

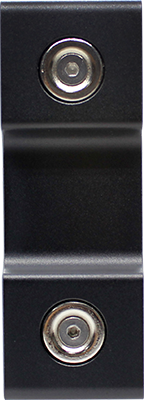

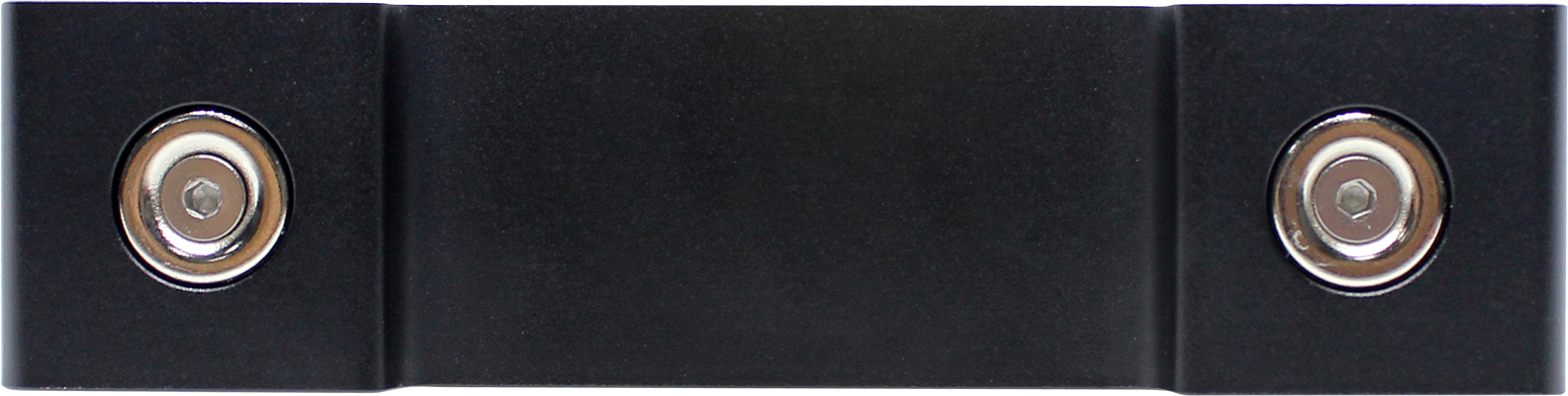

Two-sided strong magnetic adsorption installation

Specifications and Software

* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.
