RION AKM392

MEMS Digital Accelerometer

Three axes (X, Y, Z)

Output signal: RS232; RS485; TTL

Power supply voltage: 9~36V

Shock resistance: 2000G

Operating temperature: -40℃~ +85℃

Storage temperature: -40℃ ~ +85℃

Excellent deviation stability, good environmental performance (shock, vibration and temperature)

  • Product Description
  • Scope of application
  • Parameter
  • Dimensions
  • Download

Product Description

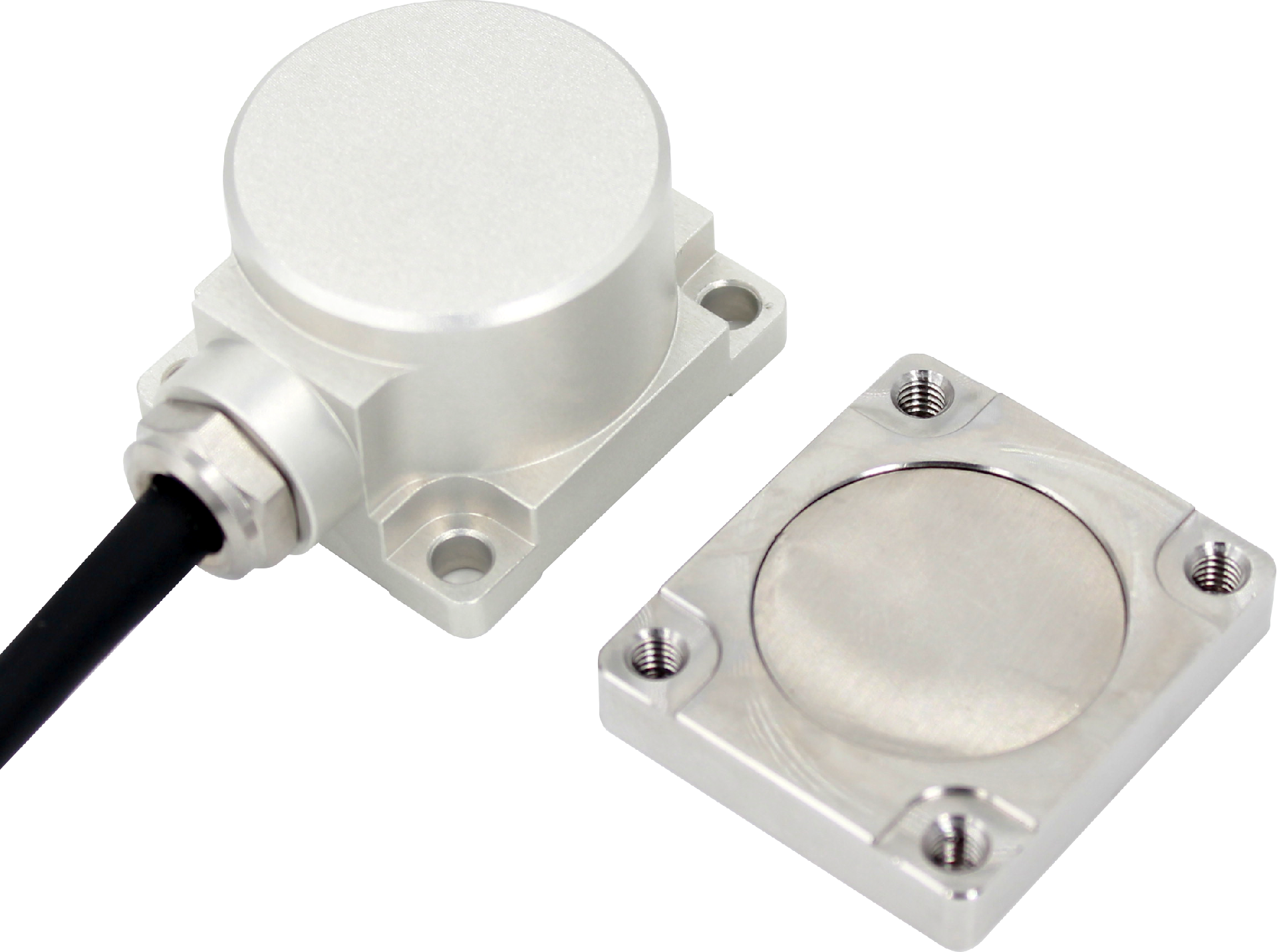

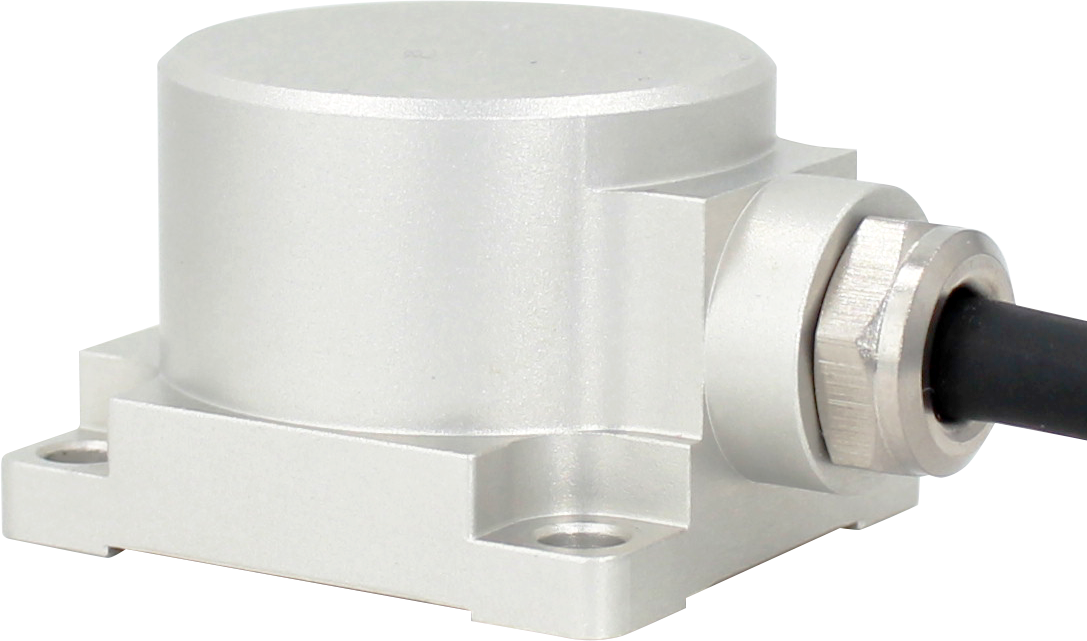

AKM392 triaxial accelerometer is a widely used acceleration sensor independently developed and produced by RION Technology, which can be applied to vibration testing, impact testing and other fields. The product adopts digital interface output, RS232/485/TTL is optional, and different address codes can be set. Multiple sensors are connected in series for a long distance, which is convenient for multi-point measurement and data analysis. The AKM392 is a monocrystalline silicon capacitive sensor consisting of a micromachined silicon chip, a low-power ASIC for signal conditioning, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, solid structure and stable output after calibration. The new electronic configuration provides solid state power for reset, providing protection against over-current. The long-term stability and deviation of the scale factor are typically less than 0.1% over the full scale range. This product has the characteristics of solid structure, low power consumption and excellent deviation stability, which ensures stable output reliability.

Scope of application

Crash Recording, Fatigue Monitoring and Prediction

Wind power

Traffic system monitoring, subgrade analysis and high-speed railway fault detection

Large machinery and engines

Low frequency vibration and automatic monitoring

Medical equipment

Bridge

Car

Roller

PARAMETERS

AKM392

PARAMETER

UNIT

Measure range

±2

±4

±8

±10

±20

±40

g

Deviation calibration

<1

<1

<1

<1

<1

<1

mg

Measure axis

X,Y,Z

X,Y,Z

X,Y,Z

X,Y,Z

X,Y,Z

X,Y,Z

Axis

Power on/off repeatability

<2

<2

<2

<2

<2

<2

Mg (Max)

Temp. coefficient of deviation

0.01

0.01

0.01

0.01

0.01

0.01

%/℃ (typical)

Resolution/Threshold (@ 1Hz)

< 1

< 1

< 1

< 1

< 1

< 1

Mg (Max)

Nonlinearity

<0.5

<0.8

<1

<1

<1

<1

% FS (Max)

Bandwidth (3DB)

500

500

500

500

500

500

Hz

Cross-axis sensitivity

1

1

1

2

2

2

%

Transverse vibration sensitivity ratio

1

1

2

5

5

5

%

Noise density

21

21

21

86.6

86.6

86.6

μg/√Hz

Resonant frequency

2.4

2.4

2.4

5.5

5.5

5.5

kHz

Automatic output rate of 68 protocol

5Hz、10Hz、25Hz、50Hz、100Hz、200Hz、500Hz、1000Hz

MODBUS automatic output rate

10Hz、25Hz、50Hz

Output interface

RS232/RS485/TTL

Communication protocol

Reifen 68 protocol and MODBUS RTU protocol

Reliability

MIL-HDBK-217, Class II

Impact resistance

100g @ 11ms, triaxial (half sine wave)

Recovery time

< 1ms (1000g, 1/2 sin 1ms, impact on i-axis)

Vibration

20g RMS, 20-2000Hz (random noise, o, p, I 30 min per axis)

Input (VDD _ VSS)

9-36 VDC

Operating current consumption

<60mA @ 12 VDC

Protection

IP67

Material

aerospace aluminum

Weight

Product net weight: ≤116g, magnetic base: ≤50g

Size

Product size: L36 × W32 × H24mm

Size of magnetic adsorption base plate: L36 × W32 × H7mm

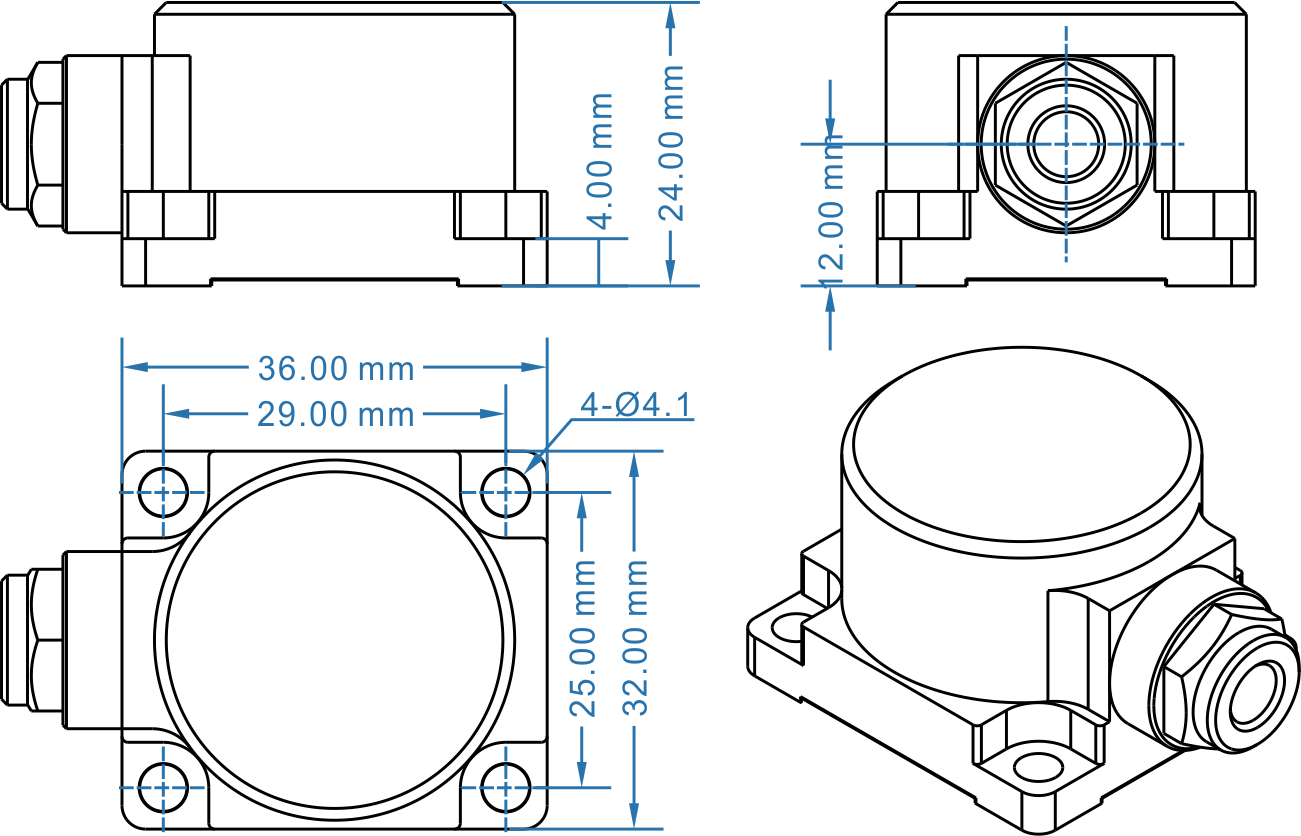

Dimensions


Size description

  • Shell size

    L36×W32×H24mm

  • Installation size

    L29×25×4mm

  • Mounting screws

    4 M4 screws

Specifications and Software

* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.
