CN
RION AKF390

MEMS VOLTAGE ACCELEROMETER

Three axis (X、Y、Z)

output voltage: 0~5V

Power supply:9~36V

anti-impact:2000G

working temperature: -40°C ~ +85°C

store temperature: -40°C ~ +85°C

excellent bias stability

Good environmental performance (impact, vibration and temperature)

  • Product Description
  • Scope of application
  • Parameter
  • Dimensions
  • Download

Product Description

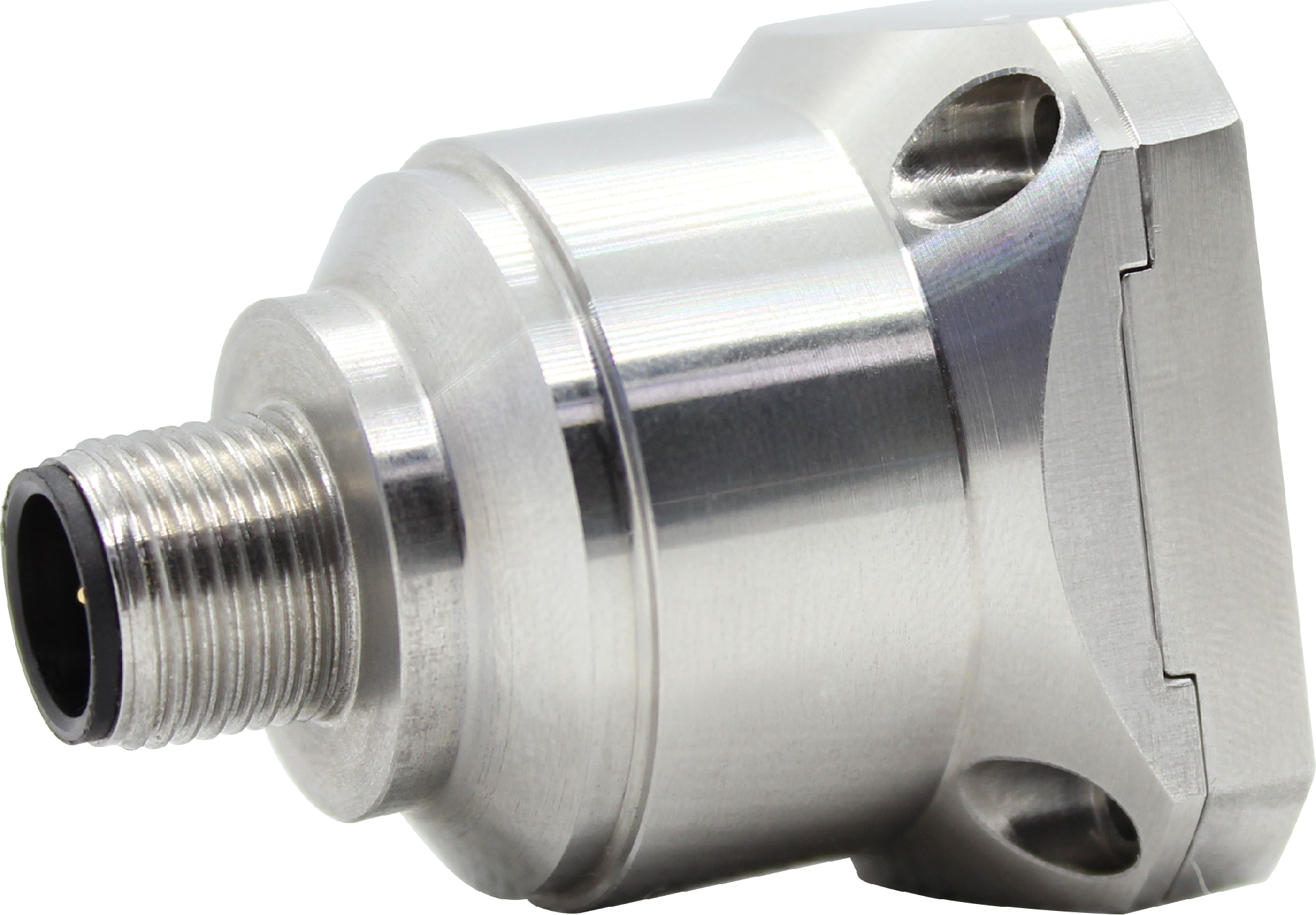

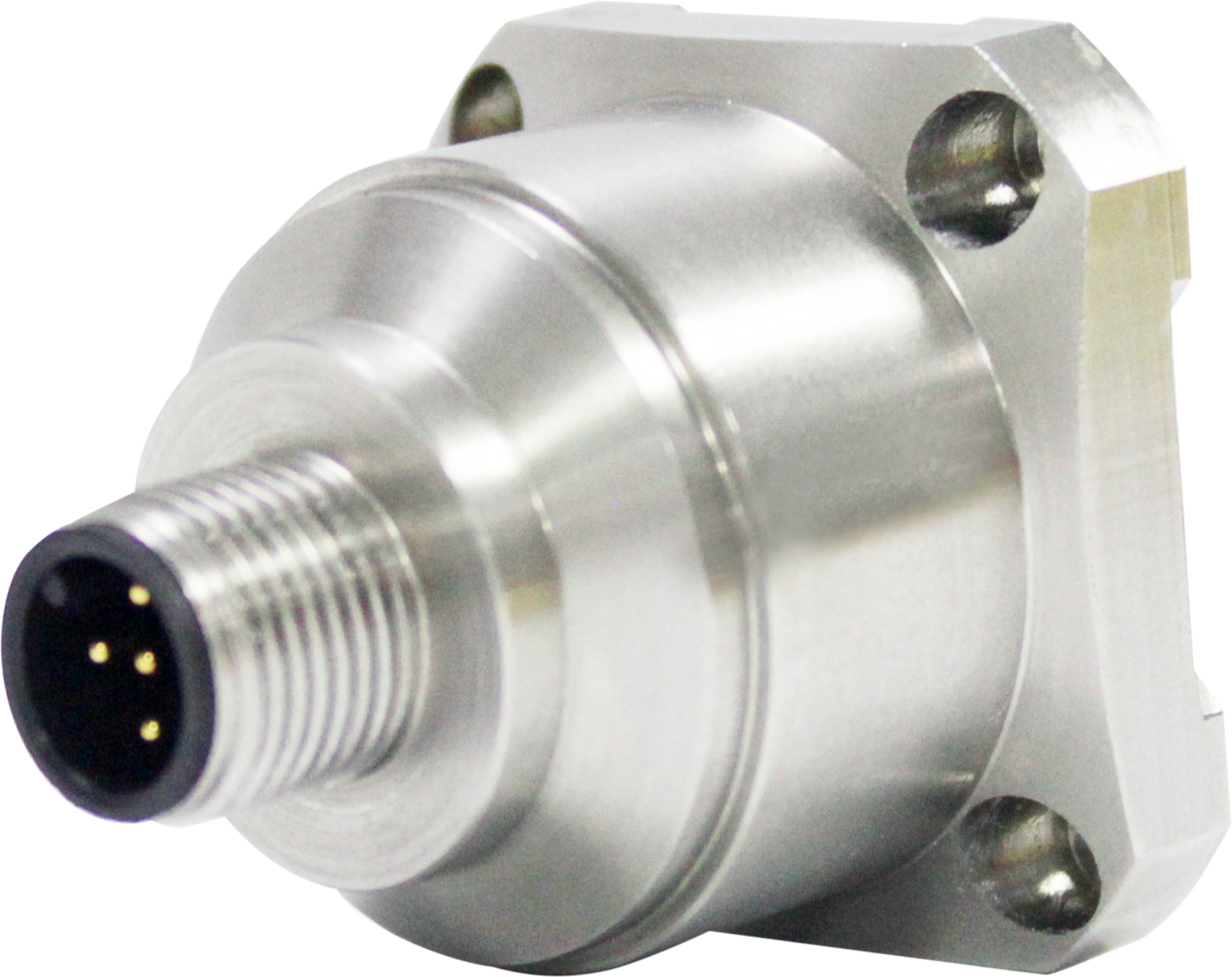

The AKF390 triaxial accelerometer is a voltage output type accelerometer independently developed and produced by RION Technology, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, different address codes can be set, and multiple sensors are connected in series for a long distance, which is convenient for multi-point measurement and data analysis. AKF390 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.

Scope of application

Road roller

Bridge

Traffic system monitoring, roadbed analysis and high-speed railway fault detection

PARAMETERS

AKF390

PARAMETER

UNIT

Range

±2

±4

±8

±10

±20

±40

g

Deviation Calibration

<1

<1

<1

<1

<1

<1

mg

Measuring Axial

X,Y,Z

X,Y,Z

X,Y,Z

X,Y,Z

X,Y,Z

X,Y,Z

Axis

Up/Off Power Repeatability

<2

<2

<2

<2

<2

<2

mg(max)

Sensitivity (± 10%)

1250

625

312.5

250

125

62.5

mv/g

Deviation temp. coefficient

0.01

0.01

0.01

0.05

0.05

0.05

%/℃

Resolution/Threshold (@ 1Hz)

<1

<1

<1

<1

<1

<1

mg(max)

Nonlinearity

<0.5

<0.5

<0.8

<1

<1

<1

% FS(max)

Frequency response

500

500

500

500

500

500

Hz

Bandwidth (3DB)

1000

1000

1000

1000

1000

1000

Hz

Cross-axis sensitivity

1

1

1

2

2

2

%

Lateral vibration sensitivity ratio

1

1

2

5

5

5

%

Resonance frequency

2.4

2.4

2.4

5.5

5.5

5.5

kHz

Noise density

21

21

21

86.6

86.6

86.6

μg/√Hz

0g output 2.5V

<0.01

<0.01

<0.01

<0.008

<0.008

<0.008

mV

The output voltage

0~5V

Reliability

MIL-HDBK-217,Grade 2

Shock Resistance

100g@11ms、3 Axial Direction (Half Sinusoid)

Recovery Time

<1ms(1000g, 1/2 Sin 1ms,Shock Acting On The i Axis)

Vibrate

20g Rms,20~2000Hz (Random Noise,o ,p,i Per Axis ForAction 30 Minutes )

Input(Vdd_Vss)

9~36 VDC

Current Consumption

<60mA @ 12 VDC

Connector

Industrial StandardM12 Connector

Protection grade

IP67

Weight

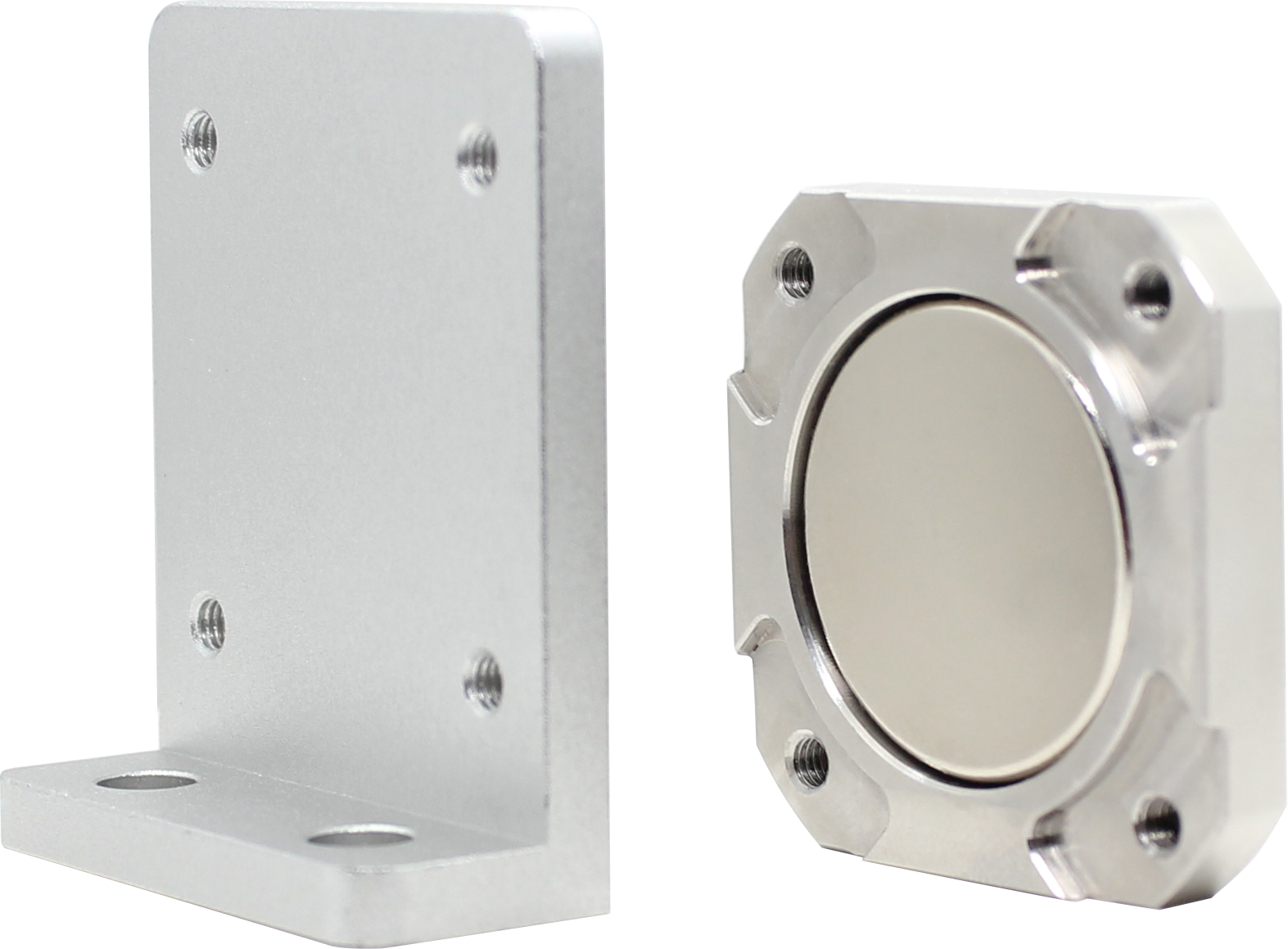

Product net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g

Dimension

Product size: 34.3*34.3*38.5mm

Magnetic adsorption base size: 34.23*34.23*6mm

L-shaped adapter plate size: 36*44*15mm

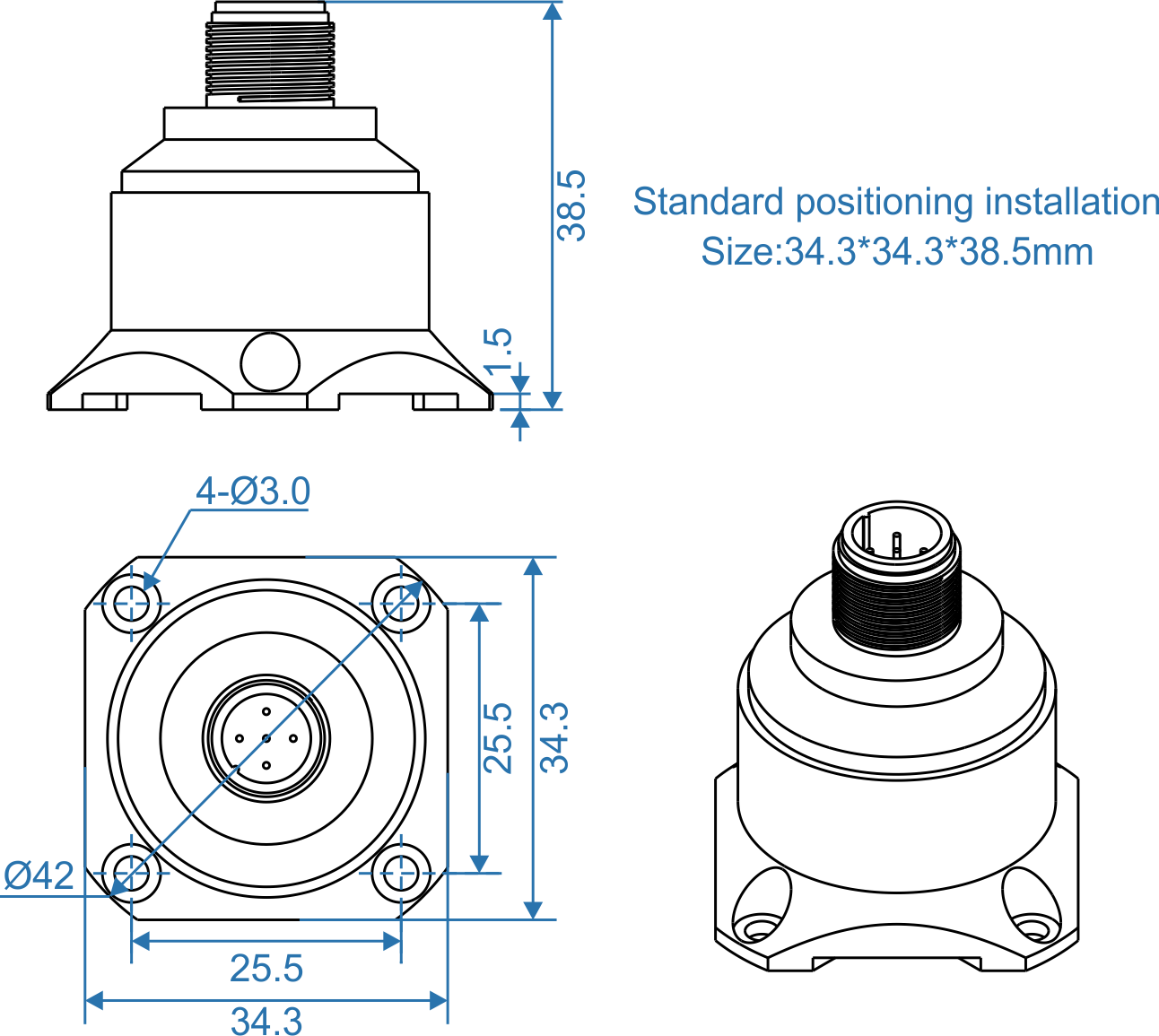

Dimensions


Size description

  • Shell size

    L34.4×W34.4×H24mm

  • Installation size

    L25.5×25.5×1.5mm

  • Mounting screws

    4 M3 screws

Specifications and Software

* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.
