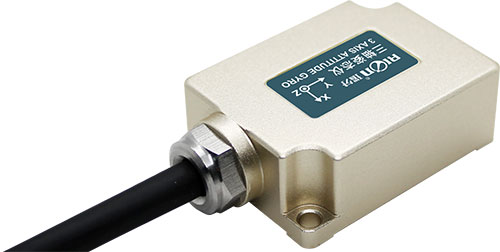

TL735G

Parameters

Azimuth measurement axis

Z-axis azimuth angle ±180°

Acquisition bandwidth

>100Hz

Azimuth resolution

0.01°

Azimuth accuracy

<0.5°

Non-linear

0.1% of FS

Pitch accuracy

0.1°  RMS

Roll accuracy

Dynamic 0.5°, static 0.1° RMS

Tilt resolution

0.01°

Tilt range

Roll ± 180º, pitch ± 90º

Gyro angular rate

±125 °/s (other angular rates can be customized)

Acceleration range

±2g

Acceleration resolution

0.1°

Acceleration accuracy

0.5mg

Default data output type

Euler angle

Default azimuth measurement range

(Data output type is Euler angle)

±180°

Start Time

5s (stationary) vibration <10mg

Input voltage

9~36V, default +24VDC, 12mA

Current

40mA

Operating temperature

-40℃ ~ +85℃

Storage temperature

-40 ℃~ +125℃

Vibration

5g~10g

Impact

200g pk，2ms，½sine

life span

10 years

Start Time

5-6 seconds, stand still (acceleration <0.01g)

Maximum sampling rate

100 times/sec

Serial communication rate

Default 9600 baud rate

Output signal

RS485

MTBF

≥50000 hours/time

Insulation resistance

≥100 megohm

Impact resistance

100g@11ms, 3 Axial Direction (Half Sinusoid)

Anti-vibration

10grms、10～1000Hz

Waterproof level

IP67

Cable

Standard 1-meter cable

Weight

35g (not including cable)
