Azimuth angle output
Strong vibration resistance
Light weight
Long life,strong stability
Cost-effective
All solid state
Compact & light design
CAN2.0A/CAN2.0B output optional

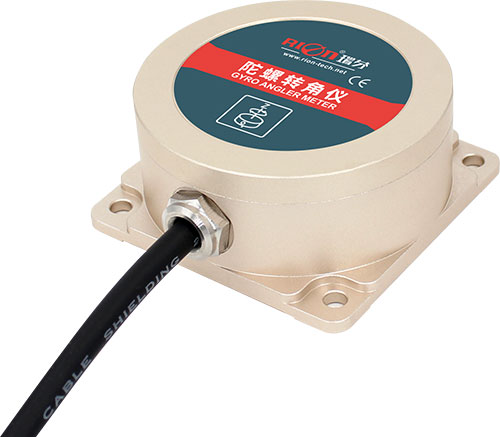

Product Description
Scope of application
Parameter

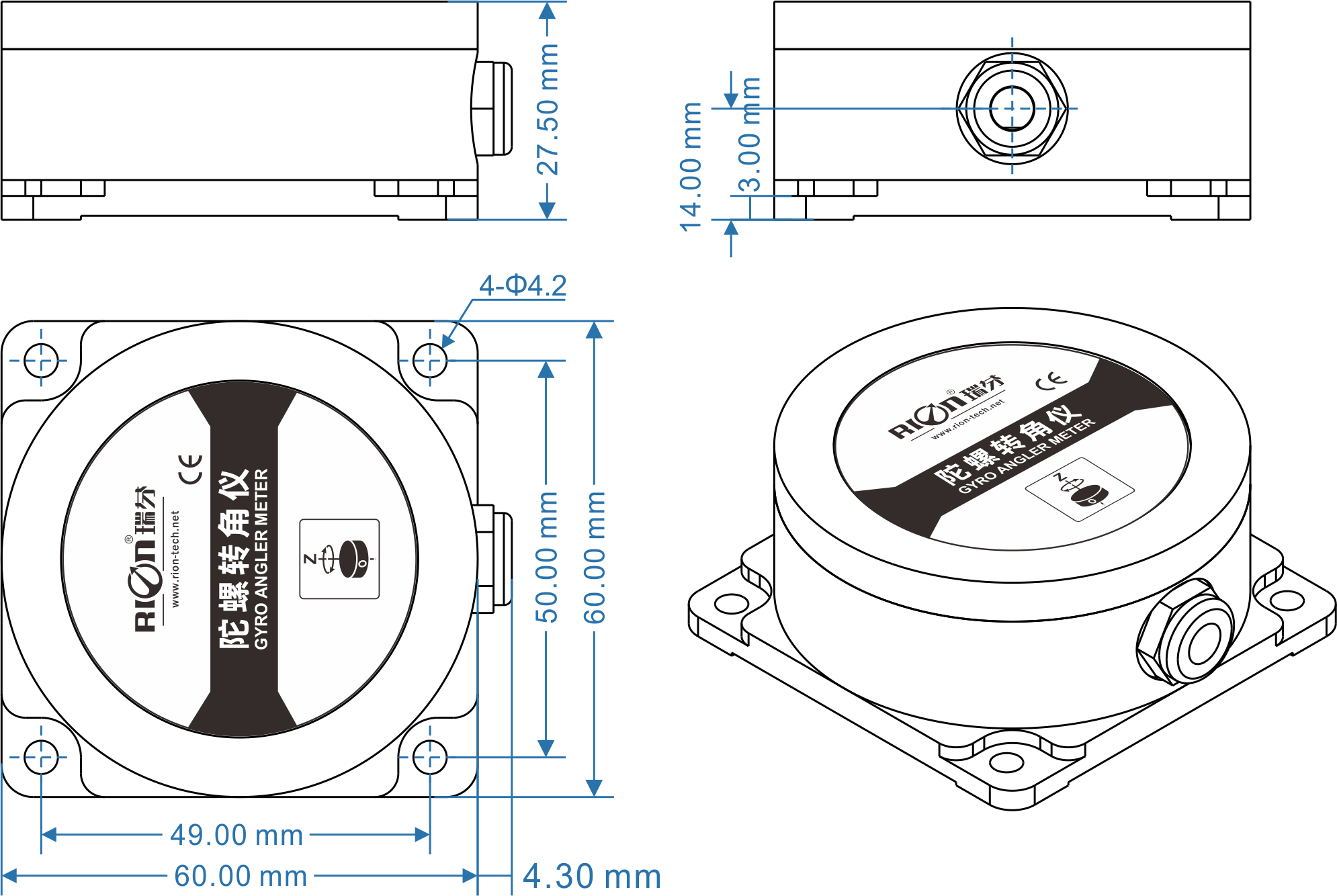

Dimensions
Download
| TL740D | PARAMETERS |
| Mesure range | Azimuth Angle (±180°) |
| Acquisition bandwidth | >100Hz |
| Resolution | 0.01° |
| Azimuthaccuracy | <0.1°/min |
| positional accuracy | <2mm/m（converted from angle accuracy） |
| Nonlinear | 0.1% of FS |
| Max angle rate | 150°/s |
| Accelerometer range | ±4g |
| Acceleroemter resultuion | 0.001g |
| Acceleroemter accuracy | 5mg |
| Starting time | 5s（Static） |
| Input Voltage | +9V~36V |
| Current | 60mA(12V) |
| Working Temp. | -40 ~ +85℃ |
| Storage Temp. | -40 ~ +85℃ |
| Vibration | 5g~10g |
| Impact | 200g pk,2ms,½sine |
| Working life | 10 years |
| Output rate | 1Hz~100Hz can set |
| Output signal | CAN2.0A / CAN2.0B |
| MTBF | ≥50000 hours /times |
| Insulation resistance | ≥100 Megohm |
| Impact resistance | 100g@11ms、3 Axial Direction (Half Sinusoid) |
| Anti-vibration | 10grms、10～1000Hz |
| Protecting | IP67 |
| Weight | 130g(Without cable) |
L60×W60×H27.5mm
L49×W50×H3mm
4 M4 screws
* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.
