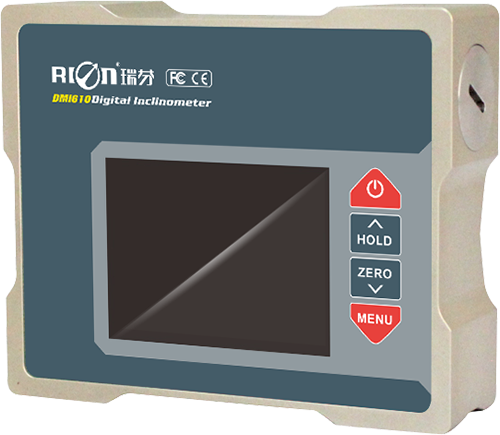

DIGITAL DISPLAY INCLINOMETER

Best accuracy：<0.02°

Repeatability：0.04°

Maximum measure range：±90°

Three kinds of measurement mode selectable (radian, angle, mm/m)

Absolute/Relative measurement can switch

Auto-angle interleaved compensation function

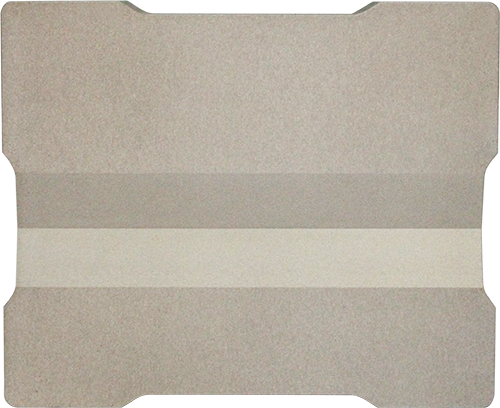

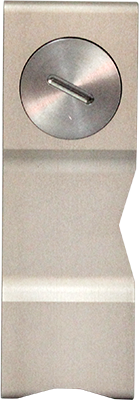

Three surface datum strong magnetic installation

Product Description

DMI610 is a digital display inclinometer for various industry angle controling and measuring. The core of this product use micro mechanical control principle, using RION patent interleaved temperature compensation model algorithm, play micro electronic mechanical principle of absolute operation advantage, to ensure the long-term stability and repeatability of measuring instrument. DMI610 single axis maximum range of up to + 90 ° , resolution 0.002 ° , the best accuracy <0.02° (in full measuring range), fast response speed, stable data , specially designed side and bottom the strong magnetic adsorption type installation, three datum can be measured using normally, bring great convenience to customers, DMI610 has the function of data storage, 3 measurement modes (Degrees, minutes, seconds、angle、mm/m) optional, strong expansibility, convenient application, industrial reliability, and has the absolute competitive price advantage in the international market have absolute competitive advantage!

Scope of application

Medical device angle leveling

Machine platform angle leveling

Lifting table angle leveling

TECHNICAL DATA

DMI610	PARAMETERS
Angle measure range	±90°	±30°
Measure axis	Single axis	Dual axis
Best accuracy	<0.02°(RMS)(Full range)	<0.005°(RMS)(Full range)
Angle measure resolution	0.001°	0.001°
Repeatability	0.004°	0.004°
Measurement mode	radian, angle,mm/m three modes can be set

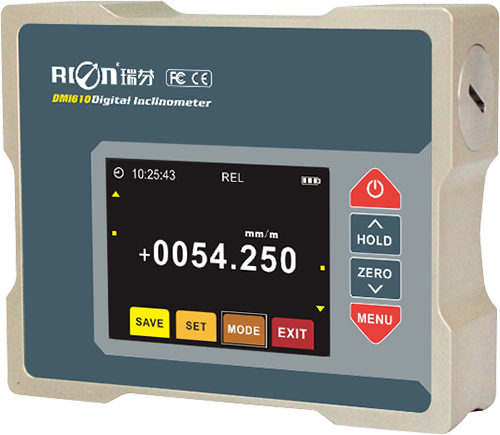

LCD	64 true colors night vision display screen
LCD visible area size	L60.5*W45mm
Working temperature	-10℃~+70℃
Working humidity	85%RH

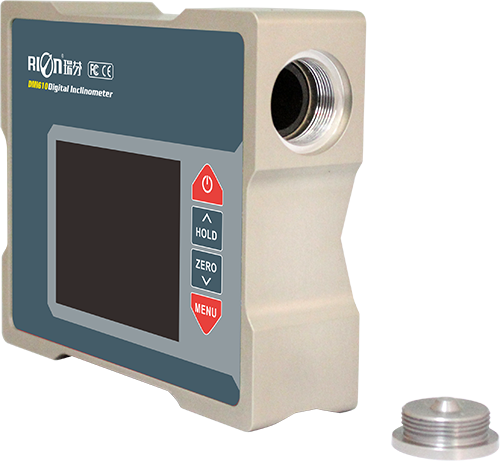

Power supply	1.5V
Ideal working time	6Hours
Shock resistance	10g@11ms、3 Axial Direction (Half Sinusoid)
Shock impact	10grms、10～100Hz
Weight	600g
Waterproof grade	IP65
Material	Anodic oxidation of aluminum alloy
Size	L115W95H32mm
Precautions	In order to achieve the highest measurement accuracy, please set the latitude information of the local city, and it will be automatically saved after setting. (Refer to the third point of the third point in the main interface function introduction of this specification)

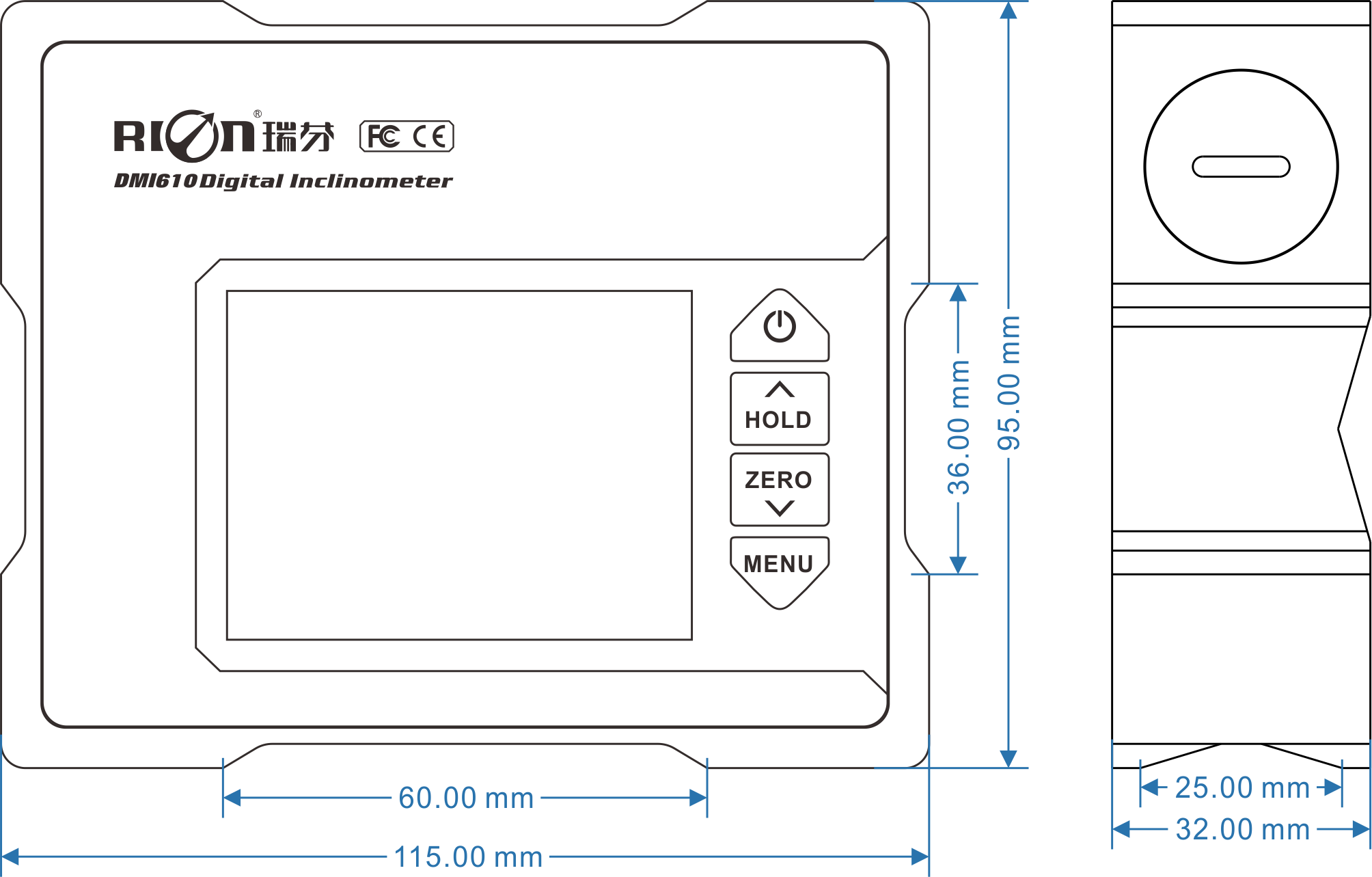

Dimensions

Size description

Shell size

L115×W95×H32mm
