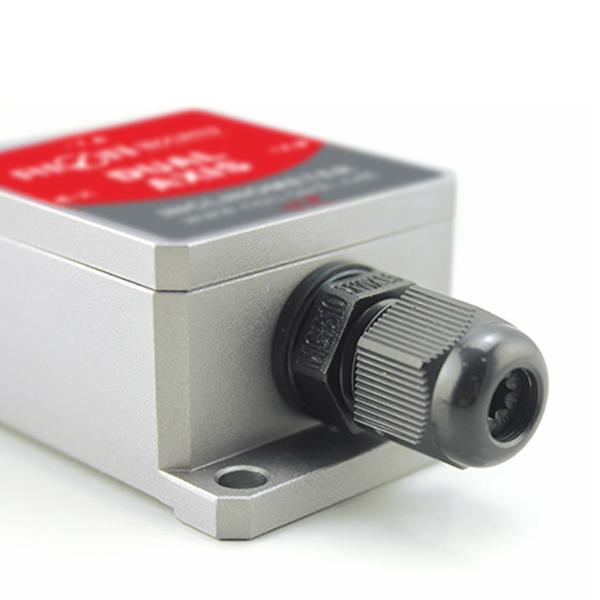

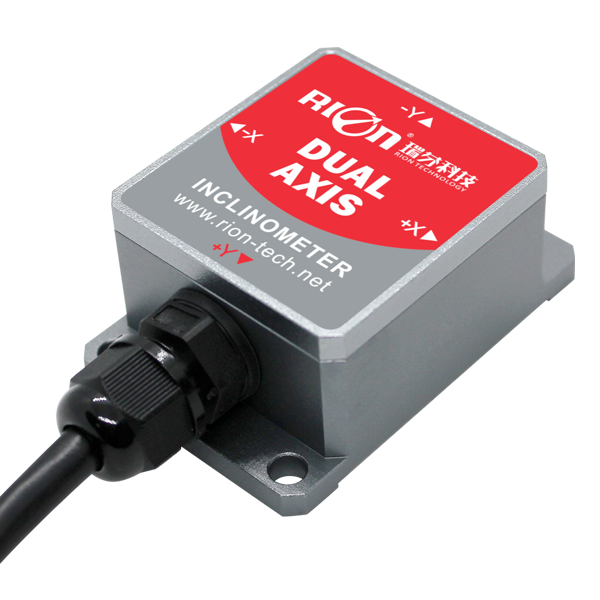

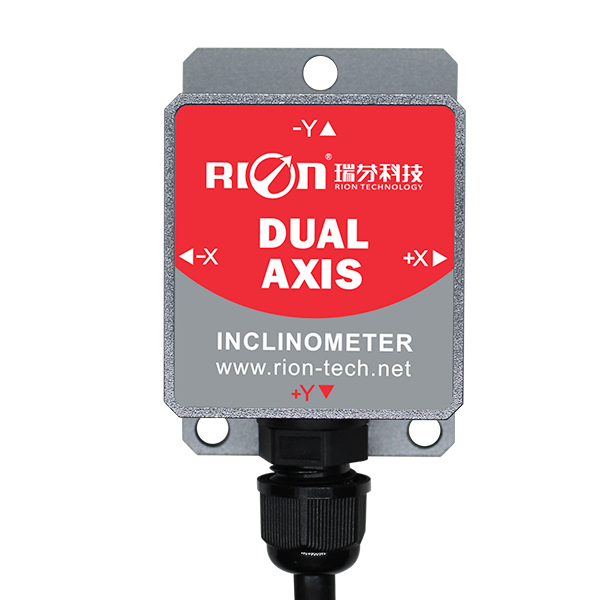

Single and biaxial inclination measurement
Any range within 360 ° is optional
Accuracy: 0.1 °
Wide voltage input 9～36V
Output mode 0～5V
Wide temperature operation -40～+ 85 ℃
IP67 protection level
High anti-vibration performance> 3500g
Resolution 0.02 °
Small size 55 × 37 × 24mm (customizable)
Product Description
Scope of application
Parameter
Dimensions
DownloadLCA310T/LCA320T is a small-volume low-cost single-axis tilt sensor developed by RION technology. The output voltage is internally quadratic linearity corrected. It is a linearity voltage output tilt sensor. It is mainly aimed at applications where volume and cost are highly restrictive. Due to the built-in tilting unit of the latest technology micro-electromechanical production process, the volume is small, the power consumption is low, and the consistency and stability of the micro-electromechanical process are very high. The working temperature reaches industrial level -40 ~ +85 ℃, which is a high cost performance Inclination module.This product adopts the non-contact measurement principle, which can output the current inclination angle in real time. It is simple to use, small size, strong resistance to external electromagnetic interference, and strong ability to withstand shock and vibration; it is an ideal choice for industrial equipment and platform measurement attitude!
| LCA310T/LCA320T | CONDITION | PARAMETER | UNIT | |||
| Measure range |
| ±30 | ±60 | ±90 | 0~360 | ° |
| Measure axis |
| X Y | X Y | X Y | X Y | Axis |
| Zero output | 0° output | 2.5 | 2.5 | 2.5 | 2.5 | V |
| Resolution |
| 0.02 | 0.03 | 0.05 | 0.08 | ° |
| Measure accuracy | @25℃ | 0.1 | 0.1 | 0.15 | 0.2 | ° |
| Long term.stability |
| <0.5 | <0.5 | <0.5 | <0.5 | ° |
| Zero Temp.coefficient | -40～85℃ | ±0.02 | ±0.02 | ±0.02 | ±0.02 | °/℃ |
| Sensitivity temp-coeffi | -40～85℃ | ≤150 | ≤150 | ≤150 | ≤150 | ppm/℃ |
| Power-on start time |
| 0.5 | 0.5 | 0.5 | 0.5 | S |
| Response time |
| 0.02 | 0.02 | 0.02 | 0.02 | s |
|
| 1～20 | 1～20 | 1～20 | 1～20 | Hz | |
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥45000 hours/times | |||||
| Insulation Resistance | ≥100 MΩ | |||||
| Impact resistance | 100g@11ms,3 Axial Direction (Half Sinusoid) | |||||
| Anti-vibration | 10grms、10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | standard configuration: 1 meter wearproof、grease proofing、wide temperature、Shielded cables 4*0.3mm2 | |||||
| Weight | ≤135g (including 1 meter cable) | |||||
| PARAMETERS | CONDITION | MIN | TYPICAL | MAX | UNIT |
|---|---|---|---|---|---|
| Power supply voltage | Standard | 9 | 12、24 | 36 | V |
| Working current |
|
| 12 |
| mA |
| Output load | resistiveness | 10 |
|
| kΩ |
| Capacitive |
|
| 20 | nF | |
| Working temp. |
| -40 |
| +85 | ℃ |
| Store temp. |
| -40 |
| +85 | ℃ |

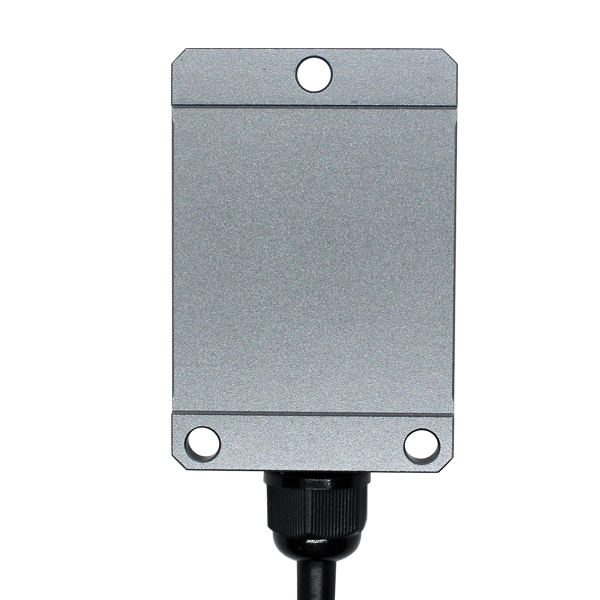

L58×W37×H24mm
L48×W28.6×H4mm
3 M4 screws
* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.
