Single/dual Axis Inclinometer
Measure Range :±1～±180° optional
Resolution: 0.01°
Output interface :0～5V
Wide voltage input: 9～36V
Wide temperature working: -40～+85℃
Highly anti-vibration performance >2000g
Product Description
Scope of application
Parameter
Dimensions
Download

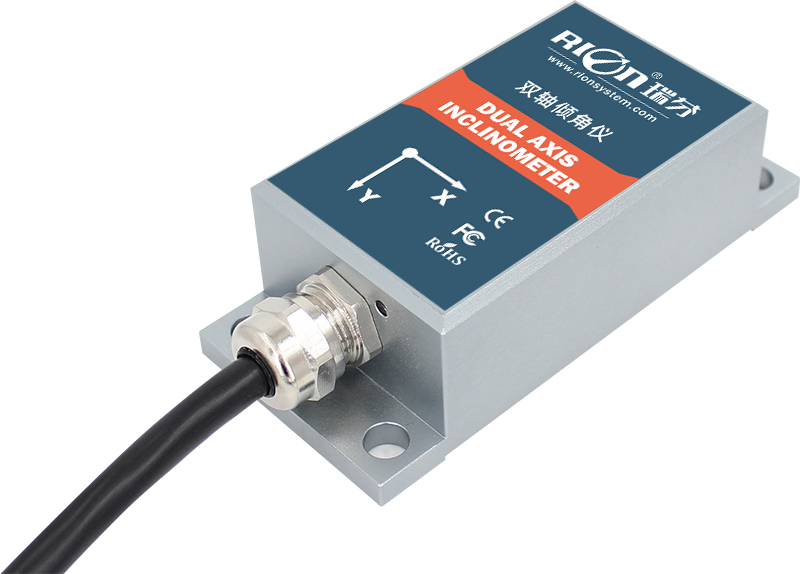

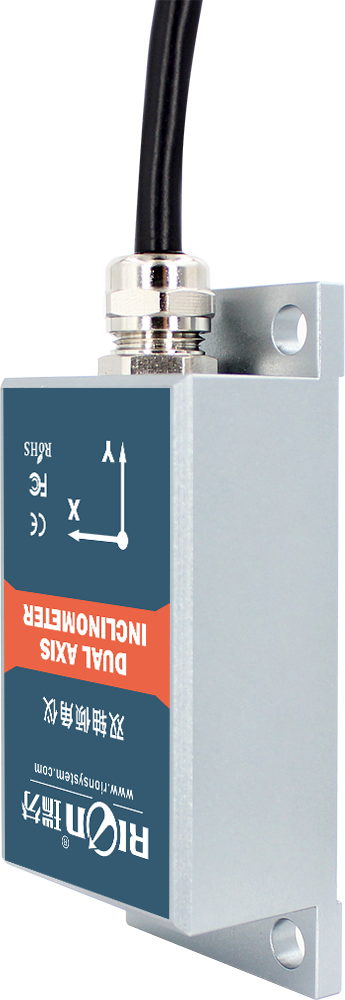

SCA110T/SCA120T is one tilt sensor with analog voltage output. Users only need to collect the voltage value of the sensor to calculate the current inclination of the object. The built-in (MEMS) micro-solid pendulum is used to measure the change of the static gravity field and convert it into the change of the inclination angle. The change is output through the voltage (0-5V); it is mainly used to measure the inclination of the object and the horizontal plane.

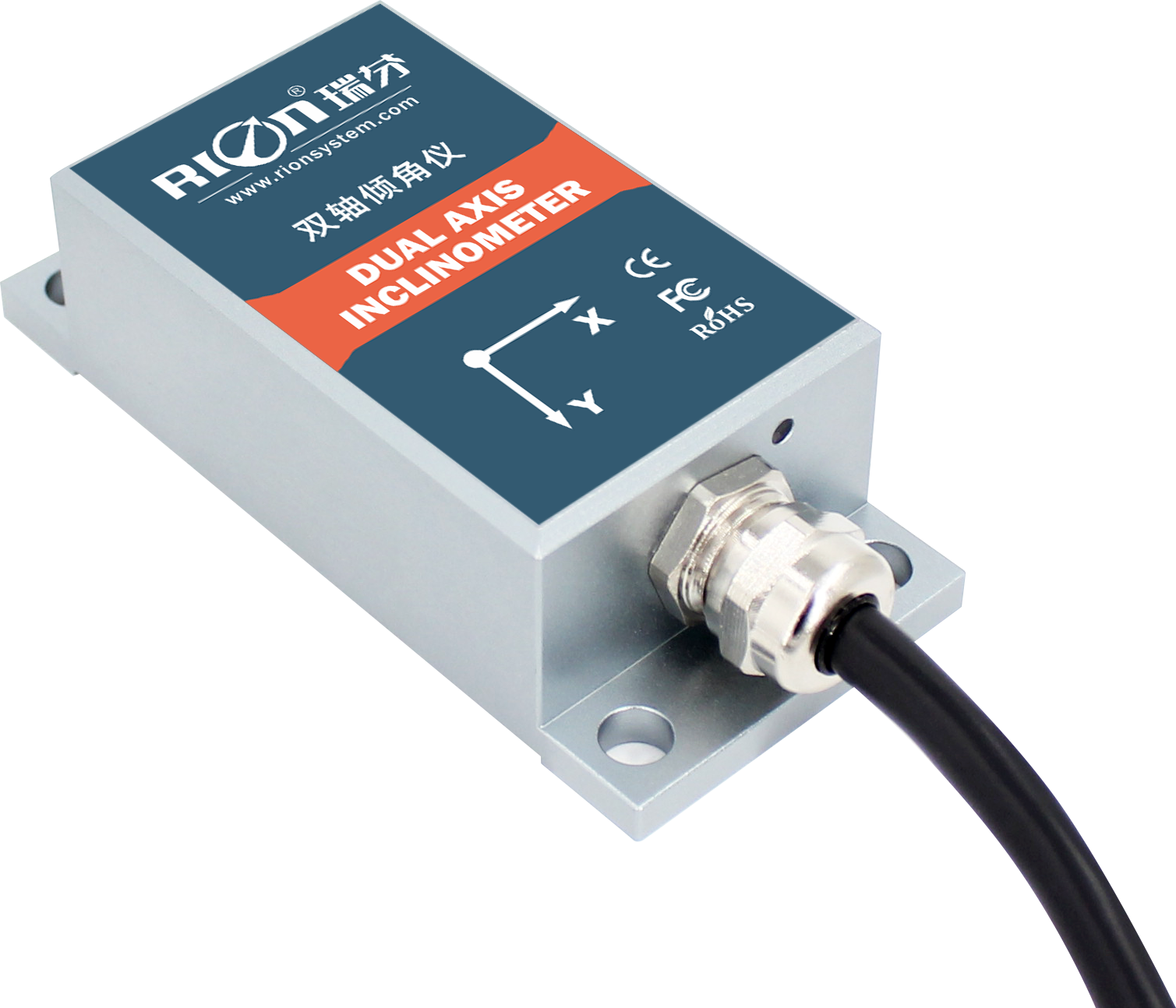

This product adopts the principle of non-contact measurement, can output the current attitude inclination in real time, and is easy to install. MEMS sensor production technology, high precision, small size, strong resistance to external electromagnetic interference, strong ability to withstand shock and vibration, is an ideal choice for industrial equipment and platform measurement attitude!
Engineering vehicle leveling
| SCA110/SCA120T | CONDITION PARAMETER | UNIT | |||||
| Measure range | | ±10 | ±30 | ±60 | ±90 | ±180 | ° |
| Measure axis | | X/XY | X/XY | X/XY | X/XY | X | Axis |
| Zero output | 0° output | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | V |
| Resolution | | 0.01 | 0.01 | 0.02 | 0.03 | 0.05 | ° |
| Measure accuracy | @25℃ | 0.03 | 0.05 | 0.06 | 0.08 | 0.1 | ° |
| ZeroTemp.coefficient | -40～85℃ | ±0.006 | ±0.006 | ±0.006 | ±0.006 | ±0.006 | °/℃ |
| Sensitivity temp-coeffi | -40～85℃ | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
| Power-on start time | | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | S |
| Response frequency | 20Hz | ||||||
| EMC | According toEN61000和GBT17626c | ||||||
| MTBF | ≥98000 hours/times | ||||||
| Insulation Resistance | ≥100MΩ | ||||||
| Impact resistance | 100g@11ms、3 AxisDirection (HalfSinusoid) | ||||||
| Anti-vibration | 10grms、10～1000Hz | ||||||
| Protection grade | IP67 | ||||||

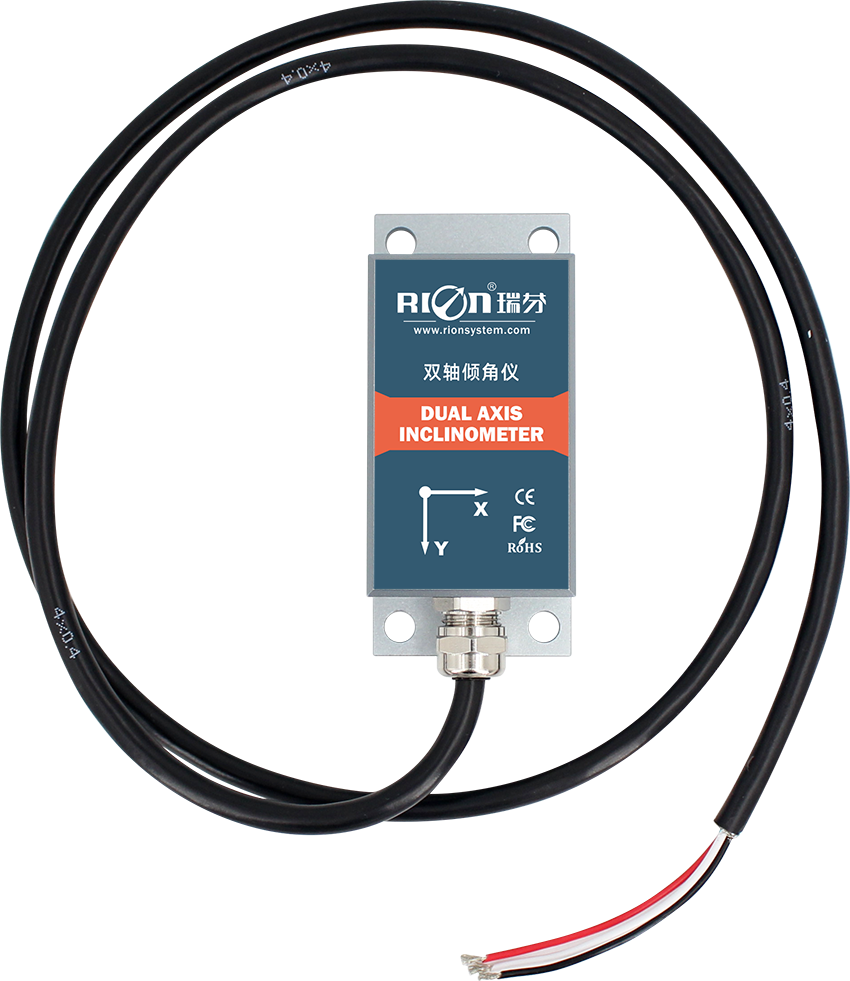

| Cables | Standard as 1-meter length, wear-resistant, oil-proof, wide temperature, shielded cable 4 * 0.4mm2 | ||||||
| Weight | ≤220g (including 1 meter cable) | ||||||

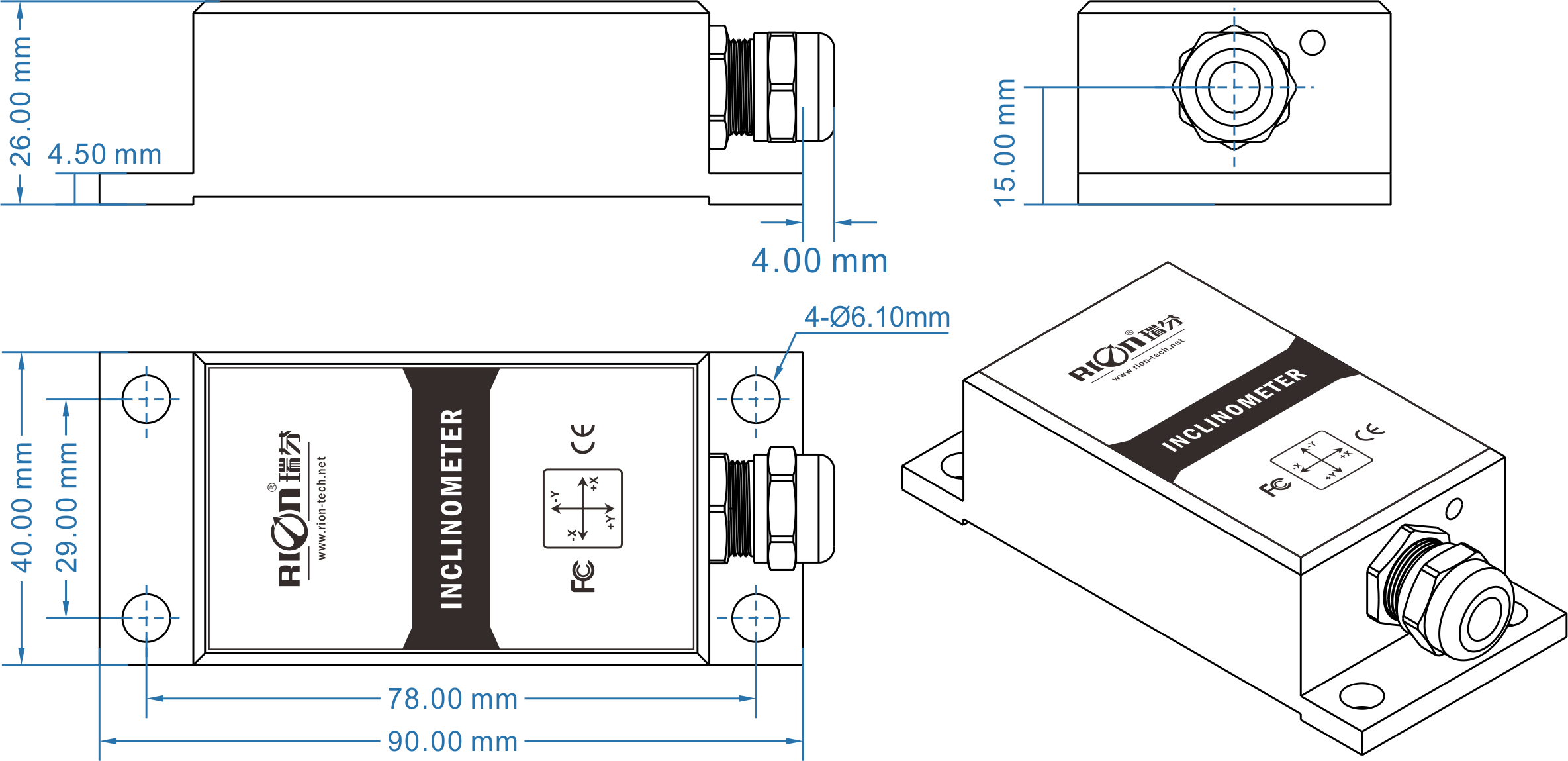

L94×W40×H26mm
L78×W29×H4.5mm
4 M6 screws
