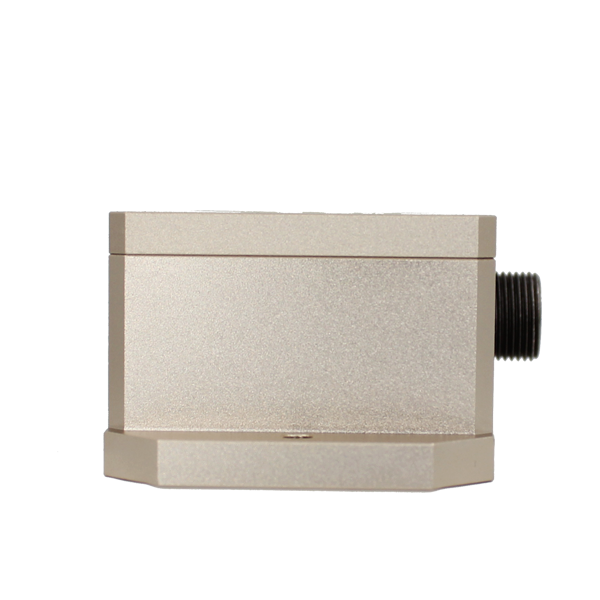

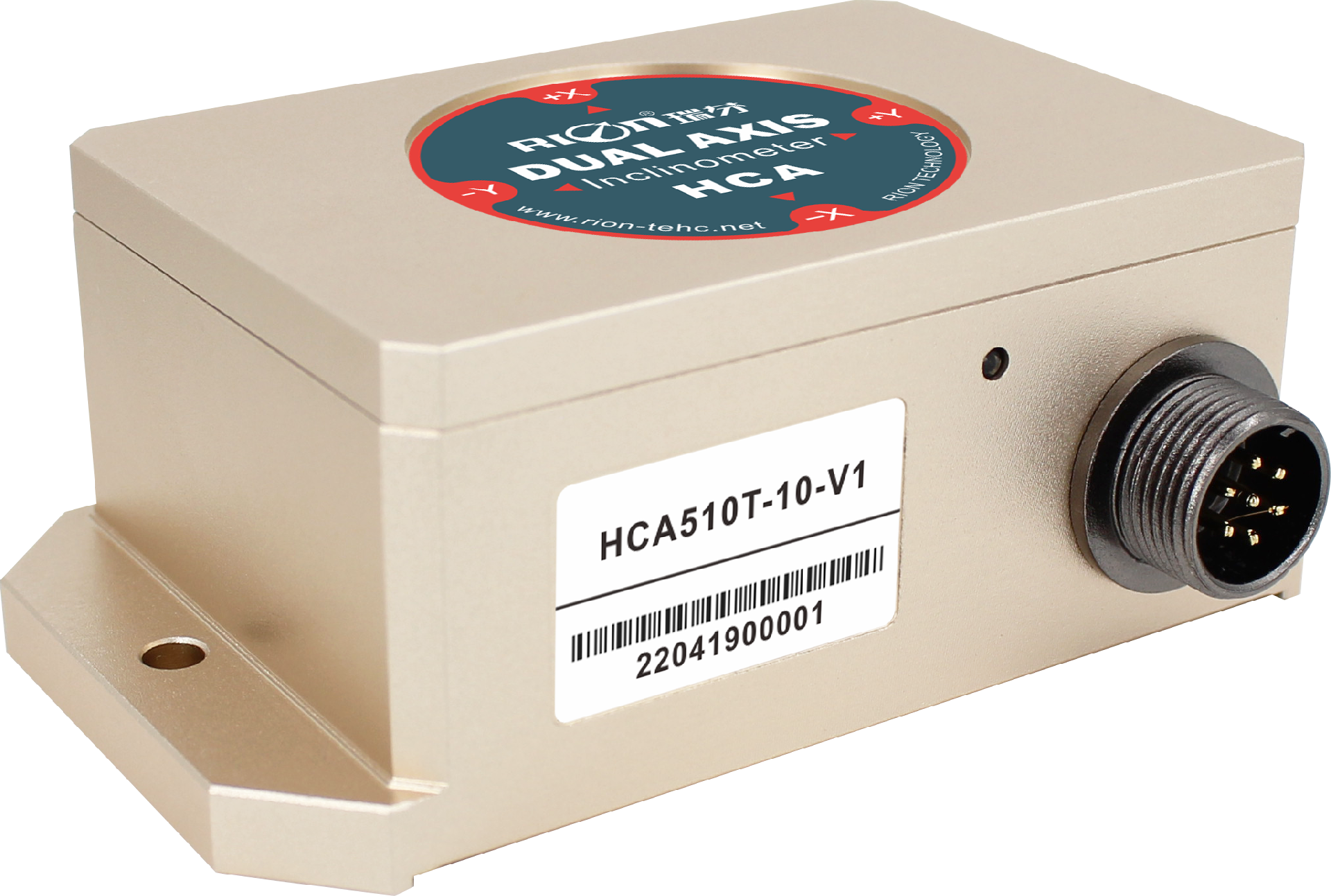

Single axis inclination measuremen
Range ± 1～± 90° optional
Accuracy: 0.005°
Wide voltage input 9～36V
Output mode 0～5V
Wide temperature operation -40 ℃～+ 85 ℃
IP67 protection
High vibration resistance> 2000g
High resolution 0.001°
Product Description
Scope of application
Parameter
Dimensions
DownloadHCA510T-N is a high-precision analog voltage output single axis inclination sensor. The highest precision in a small range can reach 0.003 °. It is one of the few high-precision inclinometers in China. Its function is mainly used to measure the inclination of the object based on horizontal plane. Built-in micro solid pendulum ,by measuring the static gravity field changes then convert into inclination change,the changes in mode output voltage (0-5V).The internal use high-resolution differential digital-to-analog converter, by the internal MCU system secondary linearity and temperature correction, the customer no need to do a secondary linearity correction, meanwhile also reducing the error caused by environmental changes on the accuracy of the product.This product uses non-contact measurement principle, can real-time output current posture inclination，Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS higher technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measure attitude!
Equipment level control
Alignment Control, Bending Control
High-altitude platform safety protection
| HCA510T-N | CONDITION | PARAMTERS | UNIT | |||
| Measure range | | ±10 | ±30 | ±60 | ±90 | ° |
| Measure axis | | X | X | X | X | |
| Zero output | 0° output | 2.5 | 2.5 | 2.5 | 2.5 | V |
| Resolution | | 0.001 | 0.001 | 0.001 | 0.001 | ° |
| Measure accuracy | @25℃ | 0.005 | 0.01 | 0.02 | 0.03 | ° |
| Zero Temp.coefficient | -40～85℃ | 0.0005 | 0.0008 | 0.0001 | 0.002 | °/℃ |
| Sensitivity temp.coefficient | -40～85℃ | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
| Power on time | | 0.5 | 0.5 | 0.5 | 0.5 | S |
| Response frequency | 20Hz | |||||
| EMC | According toEN61000 andGBT17626 | |||||
| MTBF | ≥50000 hours/times | |||||
| Insulation Resistance | ≥100MΩ | |||||
| Shockproof | 100g@11ms、3 Axial Direction (Half Sinusoid) | |||||
| Anti-vibration | 10grms、10～1000Hz | |||||
| Protection glass | IP67 | |||||

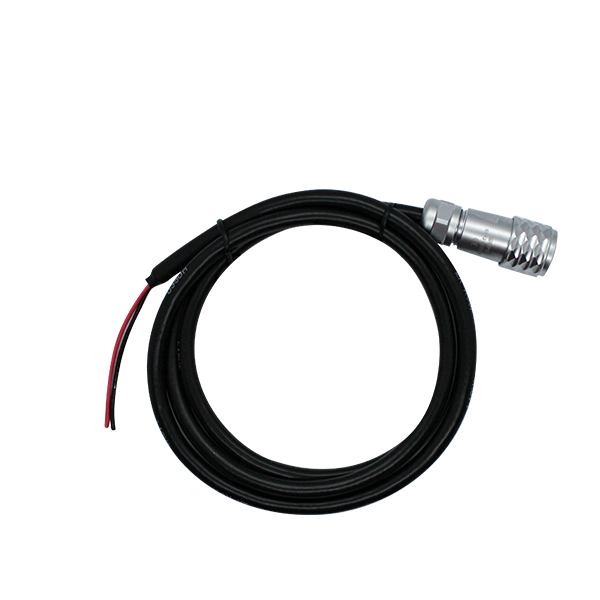

| Cables | Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable7P *6.8mm aviation connector, cable weight≤110g | |||||
| Weight | ≤250g(Excluding cable) | |||||
| PARAMETERS | CONDITION | MIN | STANDARD | MAX | UNIT |
|---|---|---|---|---|---|
| Power supply | Standard | 9 | 12、24 | 36 | V |
| Working current | | | 40 | | mA |
| Output load | Resistive | 10 | | | kΩ |
| Capacitive | | | 20 | nF | |
| Working temperature | | -40 | | +85 | ℃ |
| Store temperature | | -40 | | +85 | ℃ |

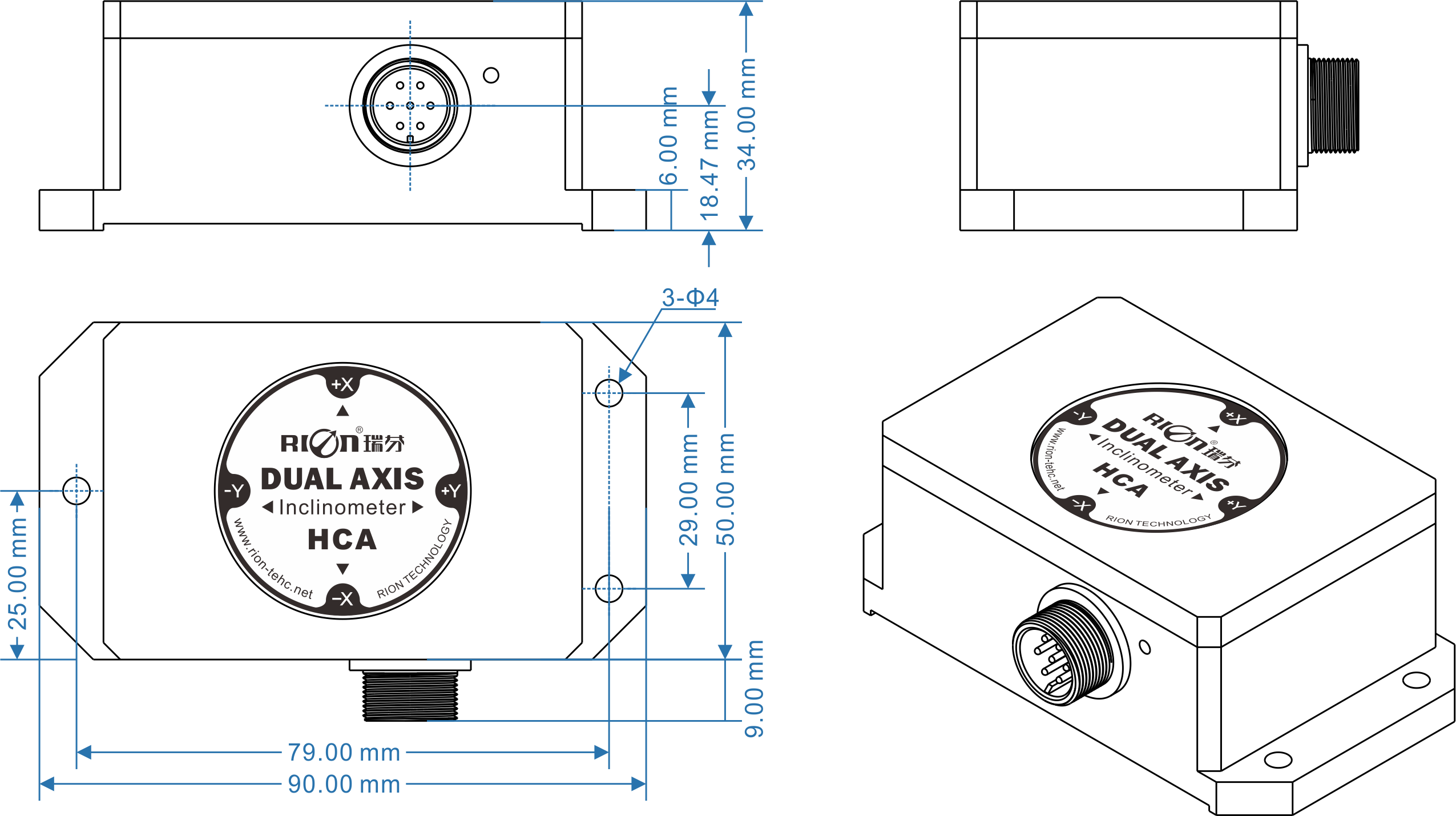

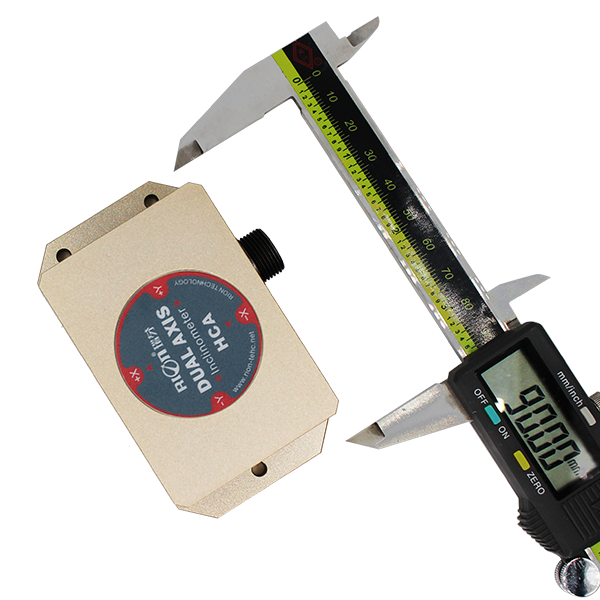

L90×W59×H34mm
L79×W29×H6mm

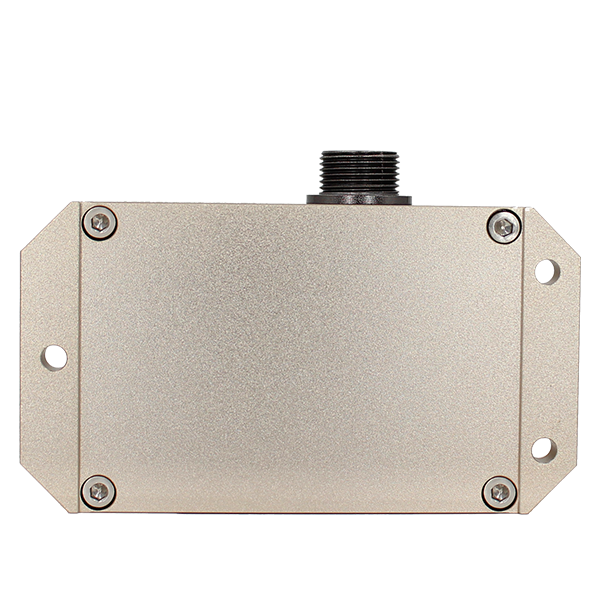

4 M4 screws
